3MP High Resolution Design,  Apply to 720P and 1080P Camera.

Outstanding Coating Technology, All Lens Elements are with Multi-layer Broadband Coating to Get Best Image.

Model:		LF2812-C-3MP-F1.6
Parameter of  lens
Pixel		3MP
Image format		1/2″
Focal length		2.8-12mm
Aperture		F1.6
Mount		CS
Field angle DxHxV(°)		98-30.5°
M.O.D.		0.2m
Dimension		Φ44.6x62mm
Weight		63g
Back focal length		6.5~8.1mm
Operation	Iris	Manual
	Focus	Manual
	Zoom	Manual
Structure		Metal + 12G
Operating temperature		-20°C~+60°C

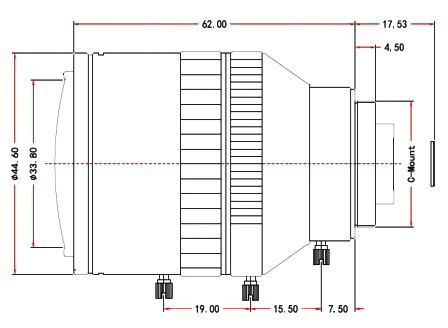

Size
Size tolerance(mm):		0-10±0.05
		10-30±0.10
		30-120±0.20
Angle tolerance		±2°
