3MP High Resolution Design,  Apply to 720P and 1080P Camera.

Outstanding Coating Technology, All Lens Elements are with Multi-layer Broadband Coating to Get Best Image.

Model:				LF2.8-M12-3MP-F2.3-IR
Parameter of Lens
Pixel				3MP
Image Format				1/2.7″
Focal Length				2.8mm
Aperture				F2.3
Mount				M12x0.5
Field Angle DxHxV(°)		1/2.7"		140°x112°x84°
M.O.D.				0.3m
Dimension				Φ14x15mm
Weight				4g
Back Focal Length				5.7mm
Operation		Iris		FIX
		Focus		/
		Zoom		/
Operating temperature				-20°C~+60°C

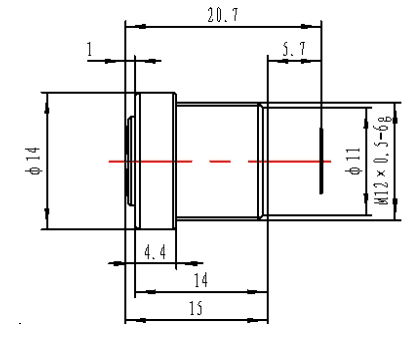

Size
Size tolerance(mm):		0-10±0.05		10-30±0.10		30-120±0.20
Angle tolerance				±2°
