LF12-M12-3MP-F2.0-IR

LF12-M12N-12MP 1/2.3" 12mm Focal length 12MP F2.4 M12 mount lens

SKU:

LF12-M12N-12MP

Category: 12mm M12 12MP Lens None Distortion Lens

$8.80

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $7.60 - $8.80

Sensor Optical Format: 1/2.5"

Effective Pixels: 12MP

Aperture: F2.4

Bottom Group

Description

Model		LF12-M12N-12MP
Resolution		12 Megapixel
Image format		1/2.3"
Focal length		12mm
Aperture		F2.4
Mount		M12
Field Angle DxHxV(°)	" °	1/2.3"
	D	35.7°
	H	28.5°
	V	21.3°
Optical Distortion		<0.5%

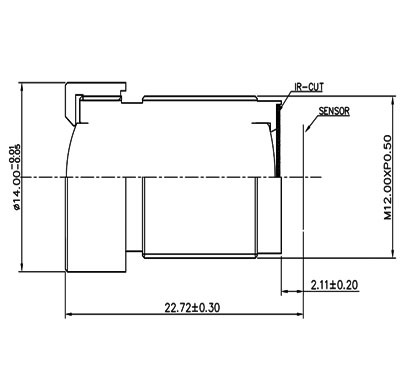

Dimension		Φ14x20.6mm
Weight		/
Relative Illumination		>79%
MBF		2.11mm
TTL		22.72mm
Chief Ray Angle		<20.3°
Structure		6G + 1 IR-CUT
Operation	Iris	Manual
	Focus	Manual
	Zoom	/
Operating temperature		-30°C~+70°C
Size

Size tolerance(mm):		0-10±0.05	10-30±0.10	30-120±0.20
Angle tolerance		±2°
