LF10.44-M16-F1P Night Vision F1.0 10.44mm 4MP 8MP 1/1.8" M16 Mount starlight night vision Security CCTV Camera Lens

SKU:

LF10.44-M16-F1P-4M

Category: Lens M16 Lens F1.0 M16 Starlight Lens

$8.80

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $8.00 - $8.80

Sensor Optical Format: 1/1.8"

Effective Pixels: 4MP

Aperture: F1.0

Focal Length: 10mm

Bottom Group

Description

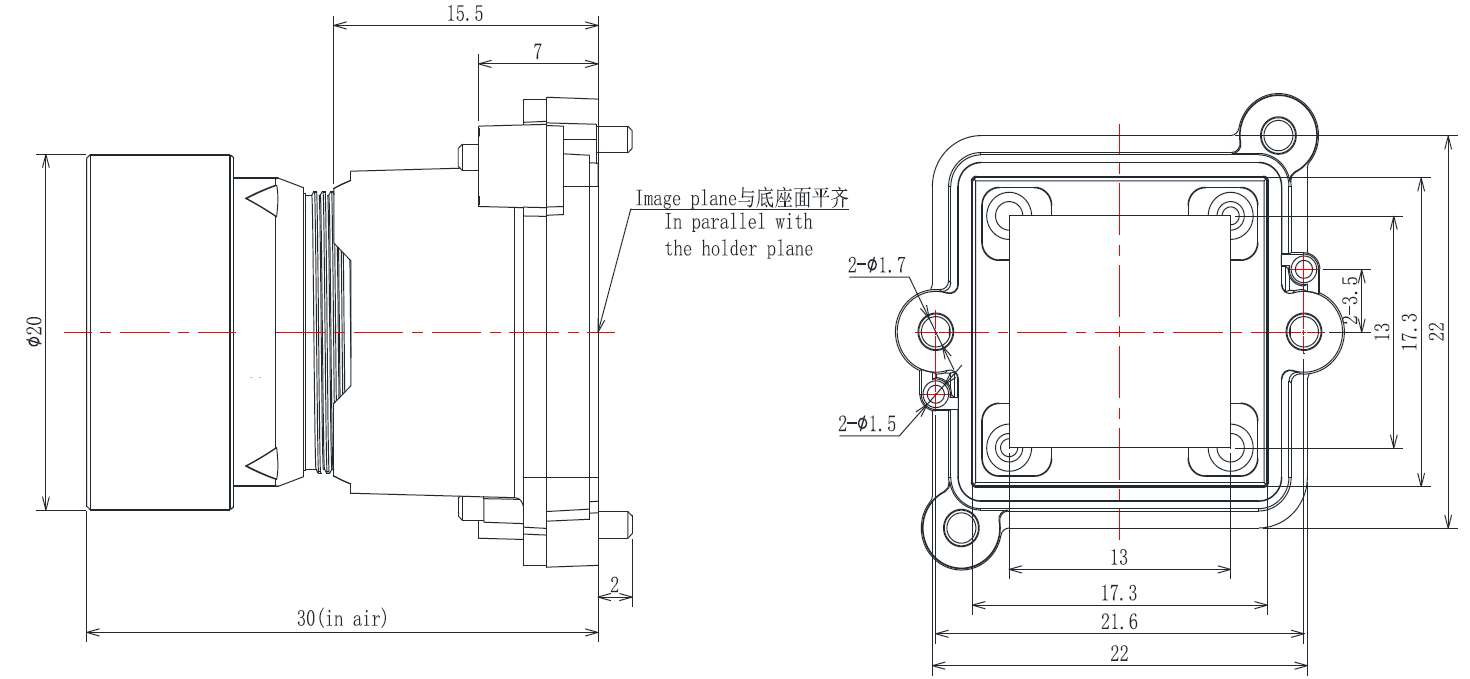

Item		specifications
Aperture (F/NO)		F1.0 ± 10%
Focal length (EFL)		10.44mm ± 5%
Total optical length (TTL)		30mm ± 0.2mm (in air)
Optical Back Focal Length (BFL)		4.94 mm ± 0.2 mm (in air)
Mechanical Back Focal Length (MBFL)		4.00 mm ± 0.2 mm (in air)
Image face size (Image circle)		9.3 mm (MAX)
Field of View (FOV)	Sensor	D (diagonal)	V	H (Level)
	1/1.8"	48.1°	23.7°	42.1°
Optical Distortion		-5.5%
TV Distortion		-2.0%
Relative illumination		46%
CRA		16.1°
Spectral Transmission		440~680nm T>80%
MOD		3m
Lens structure		4G4P
Mount		M16 *P0.5


FAQ

1. How to choose the FOV?

By default the FOV in specifications H:V is 4:3, if you use 16:9 sensor the FOV(H) will be wider, and FOV(V) will be smaller.

2. There are 1/1.8" 1/2" 1/2.5" 1/2.7" 1/3", Which one meets my needs?

The image format depends on the sensor format. The image format of lens should be equal or larger than the sensor format, otherwise there will be black area or corner.
