LB139B 1.39mm Focal Length 185 Degree F2.0 FIXED IRIS 1/2.7" CCTV Lens 5.0 Megapixel FIXED LENS M12

LF1.6-M12-MP-F2.5 1.6mm focal length 1/3" Φ5mm F2.5 M12 automotive lens

LB139B 1.39mm Focal Length 185 Degree F2.0 FIXED IRIS 1/2.7" CCTV Lens 5.0 Megapixel FIXED LENS M12

SKU:

LB139B-5MP-F2

Category: 1/3" Lens

$11.50

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $7.98 - $11.50

Bottom Group

Description

LB139B 1.39mm Focal Length 185 Degree F2.0 FIXED IRIS 1/2.7" CCTV Lens 5.0 Megapixel FIXED LENS M12 Mount

Image Format	1/2.7"
Focal Length	1.39mm
Aperture	F2.0
FOV(D/H/V)	185°x185°x185°
BFL	5.4mm
Iris	Fixed
Focus	Fixed
Zoom	Fixed
Lens Construction	7G
MOD	0.15mm
Mount Type	M12 * 0.5
Resolution	5MP
Weight	4.5g
Material	Metal

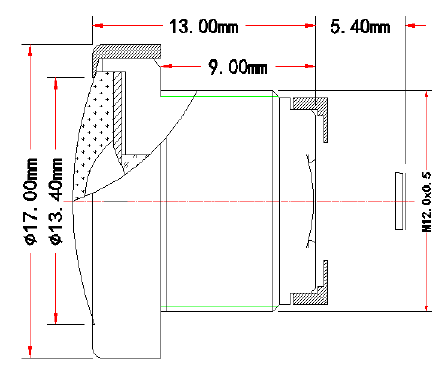

Dimensions	Φ17 * 13mm

FAQ

1. How to choose the FOV?

By default the FOV in specifications H:V is 4:3, if you use 16:9 sensor the FOV(H) will be wider, and FOV(V) will be smaller.

2. There are 1/1.8" 1/2" 1/2.5" 1/2.7" 1/3", Which one meets my needs?

The image format depends on the sensor format. The image format of lens should be equal or larger than the sensor format, otherwise there will be black area or corner.
