2-1

阻抗/Resistance

25Ω±3Ω(常温25℃下)

25Ω±3Ω(under the normal temperature25℃)

2-2

额定电压/Rated Voltage

1.关/Close    开/Open:+3.3V

2.开/Open    关/Close:-3.3V

2-3

适用电压范围/Operating Voltage

3.3~12.0V   DC

2-4

动作方向/Actuation Direction

1.红线接正电压，黑线接负电压时，关   开(白玻璃)

The   red wire of by positive voltage,the wire negative

Close    Open.(Dummy Glass)

2.红线接负电压，黑线接正电压时，开   关(红玻璃)

The   red wire of by negative voltage,the wire positive

OPEN    CLOSS.(IR Filter)

2-5

动作/Actuation

全姿势、动作范围不完全、不动作、不可干涉，通电时间

100~200ms

Whole   posture,actuation range is incomplete,no movement

Do   not interference,electrify time of 100~200ms

2-6

性能保证/Performance Guarantee

温度范围：-20℃~+80℃，动作满足2-1,2-2,2-3性能。

Temperature   range:-20℃~+80℃,Actuation meet2-1,2-2,2-3

performance.

3-1

高低温试验/High And Low

Temperature Test

1.-20℃/24H,常温放置6H后，2-2性能保证动作，其性能均可满

足.

-20℃/after   24h,6h at room temperature,2-2performance

Guarantee actuation,its performance can be   satisfied.

2.+80℃/24H,常温放置6H后，2-2性能保证动作，其性能均可满

足.

+80℃/after 24h,6h   at room temperature,2-2performance

Guarantee actuation,its performance can be   satisfied.

3-3

振动试验/Vibration   Test

按照出货标准进行包装，频率10~55Hz,振幅1.0mm,3个方向测试，总测试时间30分钟，完成后再作测试，其性能能满足2-2项目中的所有特性。

After   shipment in accordance with the standards for packaging,10~55hz frequency.The   amplitude is1.0mm,3 direction test,its total test times 30minutes,again after   the  completion of the test,its   performance can meet 2-2 all the features in the project.

3-4

跌落试验/Drop   Test

产品放置在跌落台上，高度为1M，3面各2回，共6回。完成后再作测试，测试性能可满足2-2项目所有特性。

The product   is placed on the fall,height of 1m,3the surface/2back,a total of 6times.After   further testing, test performance can meet 2-2 all the features in the   project.

3-5

噪音/Noise

1.机械噪音实用上无影响。

There is no   influence of mechanical noise and practical.

2.电气噪音实用上无影响。

There is no   influence of electrical noise in practical.

3-6

耐久性测试(寿命)

温度：+20℃±5℃湿度60%±10%条件下Close   Open   Close/0.2s一个循环，50000次作动后，满足2-2性能保证。

4-1

波长参照Cut Off –Reference Wavelength(nm)

640±10nm

4-2

红玻璃透过率

The IR FilterTransmittance

透过率在420-630nm之间，平均≥90%

Transmittance   between 420-630nm，Tave≧90%

4-3

白玻璃透过率

The Dummy GlassTransmittance

透过率在380-1100nm之间，平均≥91%

Transmittance   between 390-1100nm，Tave≧91%

4-4

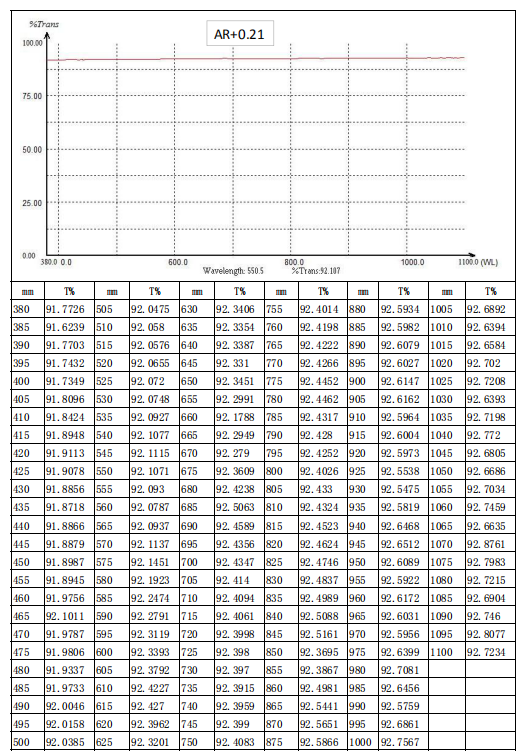

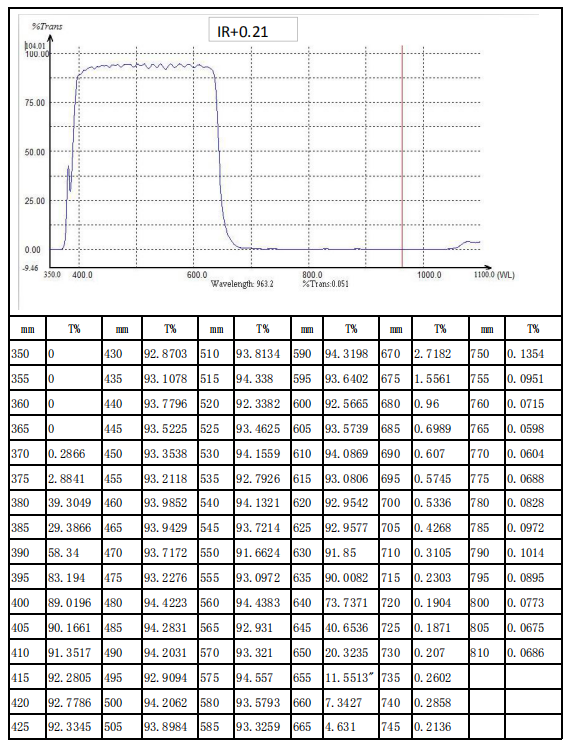

红玻璃(IR)

白玻璃(AR)

1.Width(X) 宽度：8±0.05mm

2.Length(Y) 长度:9±0.05mm

3.Thickness(T) 厚度:0.21mm

5-1

外观

Appearance

无损痕、锈斑、污痕、缺料。

Nondestructive   mark、rusty spot、stain、lack of material

5-2

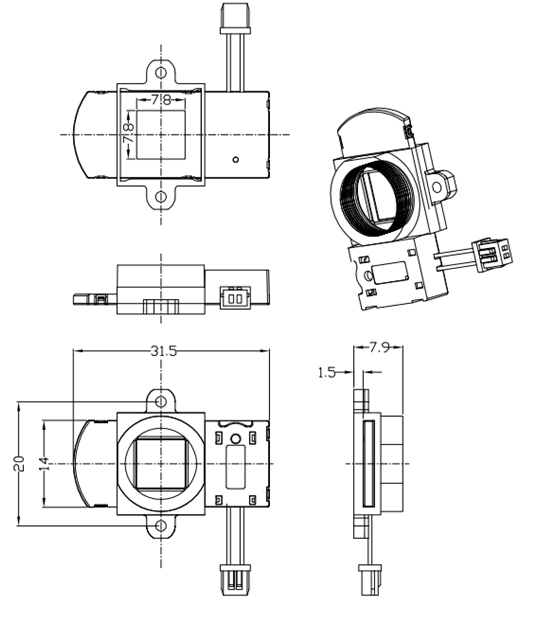

关键尺寸

Critical Size

标注公差范围

Meet   tolerance range

5-3

出货检查Shipment   inspection Specification

1.常温：+20℃±5℃/Temperature:+20℃±5℃

2.常湿：60%±25%/Often60% plus or minus25%

3.Close/关    Open/开：+3.0v

4.Open/开    Close/关：-3.0v

6-4

特性/Features

满足规格条款2-1~2-6/Meet   Specification clause2-1~2-6
