Hupuu Electronics

HP675D-L3.47 1/2.8" Starvis2 SONY IMX675 5MP 30fps H.265 IP Starlight 3.47mm M12 Lens IP Camera Module

HP675D-L2.8 1/2.8" Starvis2 SONY IMX675 5MP 30fps H.265 IP Starlight 2.8mm M12 Lens IP Camera Module

HP675D-L2.8 1/2.8" Starvis2 SONY IMX675 5MP 30fps H.265 IP Starlight 2.8mm M12 Lens IP Camera Module

SKU:

HP675D-L2.8

Category: Starlight Camera Board Starlight IP Camera Board IP Camera Board Dual Board IP Camera Board 5MP IP Camera Board

Video Coding Format: H.264 H.265 H.265+

HTML5 Starlight Starvis 2

$103.00

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $100.00 - $103.00

Sensor Optical Format: 1/2.8"

Imaging Sensor: IMX675

Effective Pixels: 5MP

Hole Distance: 20mm

Bottom Group

Description

HP675D-L2.8 1/2.8" Starvis2 SONY IMX675 5MP 30fps H.265 IP Starlight 2.8mm M12 Lens IP Camera Module

Feature:

1/2.8" 5MP Sony Starvis2 IMX675 CMOS sensor
HTML5 plugin free web page access video preview for Chrome IE Edge Firefox Safari Browsers
Standard 38*38 dual board structure
Support H.265+, H.265, H.264 encoding
Support image flip, support backlight compensation, glare suppression, 3D digital noise reduction, fog transmission, support digital wide dynamic
support IR/full color/Dual light mode, support PWM dimming
Support standard ONVIF, GB28181
Support motorized zoom (optional), auto iris (optional)
Provide SDK development kit, support secondary development
Intelligent functions: motion detection

SOC	Hi3516AV300,Cortex A7@900MHz
Sensor	1/2.8" Progressive Scan Starvis 2 CMOS IMX675
Min illumination	Color: 0.001Lux@F1.0(AGC ON), Black & White: 0Lux(IR ON)
WDR	100 dB

Main Stream Resolution	30 fps@（2592 x 1944, 1920 × 1080）
Sub Stream Resolution	30 fps@（704×576,640×480）
Coding	H.265+/H.265/H.264
Bitrate	32 Kbps~16 Mbps
H.264 coding	Baseline Profile/Main Profile/High Profile
H.265 coding	Main Profile
Bitrate	CBR,VBR
Character Overlay	Support
Image watermark overlay	Support
Image Enhance	Backlight compensation, glare suppression, 3D digital noise reduction, fog transmission
Image settings	Rotation, saturation, brightness, contrast, sharpness, AGC, white balance, day/night conversion support

Audio port	1ch input, support mic / line in; 1ch output support earphone or amplifier
Audio sampling bitrate	8 kHz
Audio coding format	G.711u law / G.711a law / G.726 / AAC-LC(32K)

Preview channels	8ch MAX
Protocol	HTTP, HTTPS, TCP/IP, UDP, RTP, FTP, RTCP, RTSP, NTP, DHCP, DNS, DDNS, SNMP, SSL/TLS, WebSocket, UPNP, PPPOE Etc.,Support ONVIF standard protocol
Browser	Preview with plugin: IE10,IE11 Preview with local service: Edge,Chrome,Firefox etc.

Network	1 RJ45 Ethernet port, 10M/100M adaptive
Audio	1ch input, support for microphone or pickup input; 1ch output, support for connecting headphones or amplifiers
LED light	Support photosensitive detection input, support PWM dimming
USB	1 USB2.0 (5V Power),Support 4G/WiFi
Reset	Support

Size	38x38x18mm,38mm dual board structure
Weight	33 g
Working temperature	-20°C ~ +60°C
Power consumption	DC12V Power input

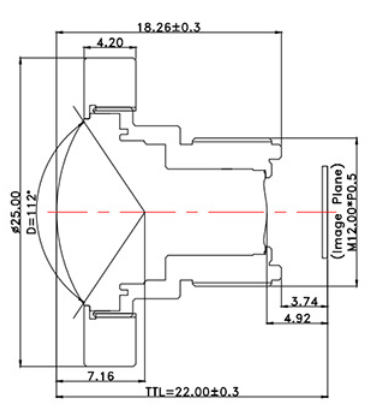

2.8mm Lens:

Model:		LF2.8-M12-12MP-F2.4
Parameter of Lens
Pixel		8MP
Image Circle		Diameter 7.5mm
Image Format		1/2.5" (16:9)
Focal Length		2.8±5% mm
Aperture		F2.4±5%
Mount		M12×0.5
Field Angle D×H×V(°)	°	1/2.5" (IMX274)	1/2.8" IMX290
	D	112	103
	H	100	94
	V	80	62
Optical Distortion		<2.0%
CRA		<19°
Dimension		Φ18×18.26mm
Weight		6g
Flange Back Focal Length		3.74mm
Back Focal Length		4.92mm
Dual filters switcher		650nm IR-CUT filter / dummy glass
Operation	Iris	FIX
	Focus	/
	Zoom	/
Operating temperature		-20°C~+60°C
Size
