Image Sensor

1/3" SONY CMOS Sensor  (2.0MP)  NVP2441H +IMX322

Resolution

1080P High definition Analogue  (AHD)

Effective Pixels

PAL:1920x1080@25fps NTSC:1920x1080@30fps

Min.Illumination

Color :0.0001Lux@(F1.2,AGC ON)

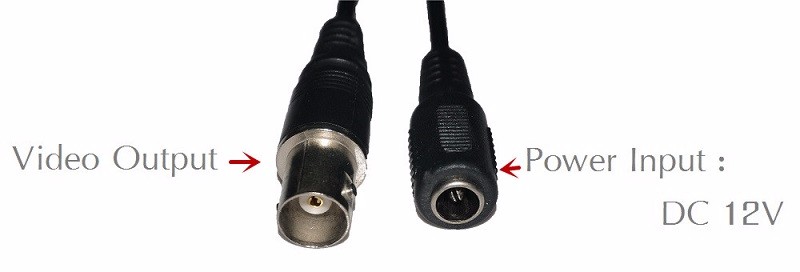

Video Output

1Vp-p Composite Output(75Ω/BNC)

LDR

one LDR,support LDR input signal and image,IR-CUT,IR leds linkage

Electric Shutter

1/50(1/60)-1/100,000s

Day and Night

Not Suppor IR-CUT

IR leds

0 IR leds IR Distance(0m)

Lens

3.6mm Lens

Auto compensation

Auto

Sync System

Internal

S/N Ratio

>58dB

Temperature and Humidity

- 10 °C ~ 60 °C, humidity is less than 90% (no condensation)

Power

DC12V±10%

Consumption

70mA MAX
