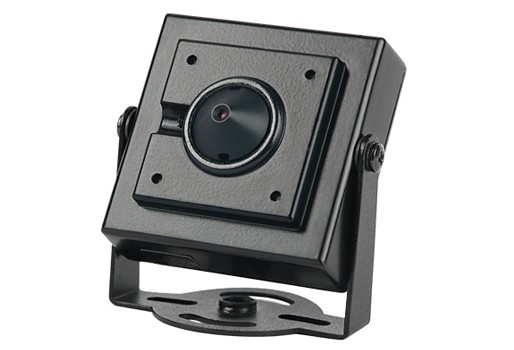

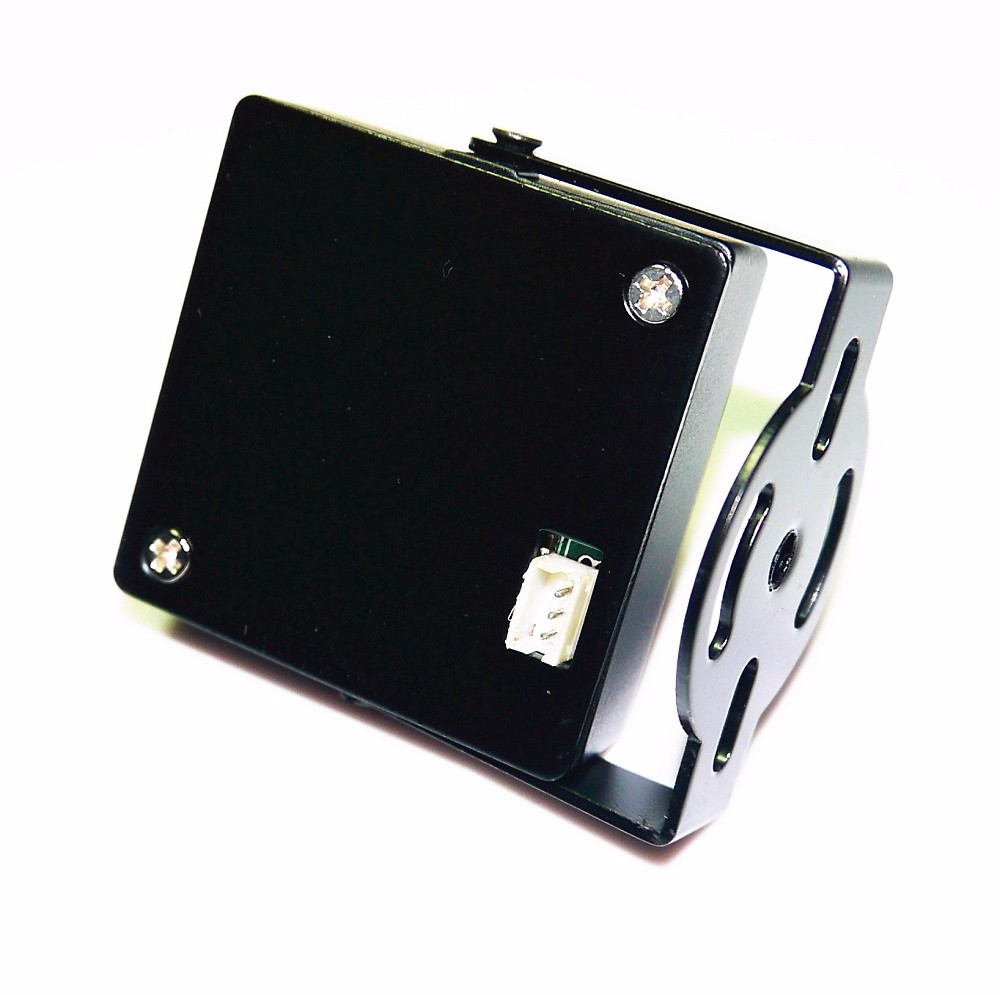

High Resolution HD 1/3" SONY CMOS 1200TVL Security Mini CCTV Camera

CCTV AHD Camera Sony 1/3" Color 2.0MP CMOS Sensor 2000TVL 3.6mm lens MiNi AHD Camera DC12V 70mA

Cost Promotions High Quality 1080P CCTV AHD Camera Sony 1/3" Color 2.0MP CMOS Sensor 2000TVL MiNi AHD Camera DC12V 70mA

SKU:

78709-PAL

Category: MiNi Camera

$23.00

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $21.08 - $23.00

TV System: PAL

Bottom Group

Description

Packing list:

1 x 3.7mm lens 1080P HD AHD-H 2.0 MegaPixel Camera(Color:black)

1 x Screws package

1 x English manual

Not Support OSD Menu

Please note that:AHD Camera must be equipped with AHD DVR simultaneously use.

Not support Analog DVR

Not support directly connected TV

----------------------------------------------------------------------------------------------

Cost Promotions

Sony 1/3" IMX322 CMOS sensor with Hass latest NVP2441H Program.

H.264 video encoding,the highest resolution of 1920*1080,Color 0.001Lux & F1.2.

LENS:3.7mm lens

Shell Size:36 x 36mm

Shell material:Metal

Support shimmer Night Vision full color(Under complete darkness, unable to display video images)

Not Support OSD Menu

Model

AHD20036(2.0 MegaPixel)

Chipset

NVP2441H+IMX322

System format

PAL

NTSC

Effective Pixels

PAL: 1920(H) × 1080(V)

NTSC: 1920(H) × 1080(V)

Minimum illumination

Color 0.001Lux & F1.2

Horizontal resolution

AHD: 2.0 MegaPixel 1080P, Analog: 2000 TVL

Scanning Frequency

50Hz

60Hz

Gamma

0.45

Electronic shutter speed

1/50 ~ 1/100000s

1/60 ~ 1/100000s

SNR

≥ 46db

Video output

1.0V p-p

Operating temperature

-20 º C - 50 º C

Working humidity

Relative humidity less than 95%

Power supply

DC12V (±10%) 70mA

Cost Promotions High Quality 1080P CCTV AHD Camera Sony 1 3 Color 2.0MP CMOS Sensor 2000TVL MiNi AHD Camera DC12V 70mA
