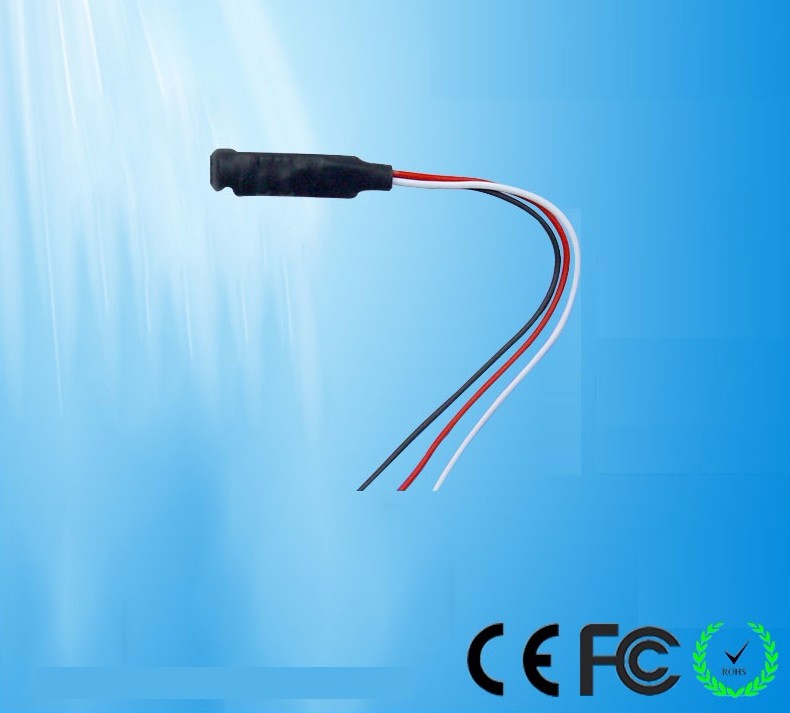

CS-05A Mini high-fidelity sound monitor For CCTV Microphone

SKU:

HAM-05A

Category: Microphone

$3.20

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $2.19 - $3.20

Bottom Group

Description

Packing list:

1 x CS-05A Mini high-fidelity sound monitor For CCTV Microphone

(not include power supply interface and audio interface)

--------------------------------------------------------------------------------------------------------------

Description

Taiwan design,Micro-chip design, High-fidelity,Adjustable sensitivity, Voltage :6-12VDC

Frequency response :100-5500 Hz,

Output signal amplitude: 2.5Vpp/-25db

Output impedance: 600 ohms unbalanced

Transmission distance: 1000m above

Monitoring range: 50 square meters

Parameter

Voltage: linear power supply (transformer) DC 9-12V

Electric current: 15 mA

Output impedance: 600 ohm non equilibrium

Connecting mode:

red (power +)

black (GND)

white (audio +)

Apply to video recorders such as HIKVISON, dahua, hanbang.
