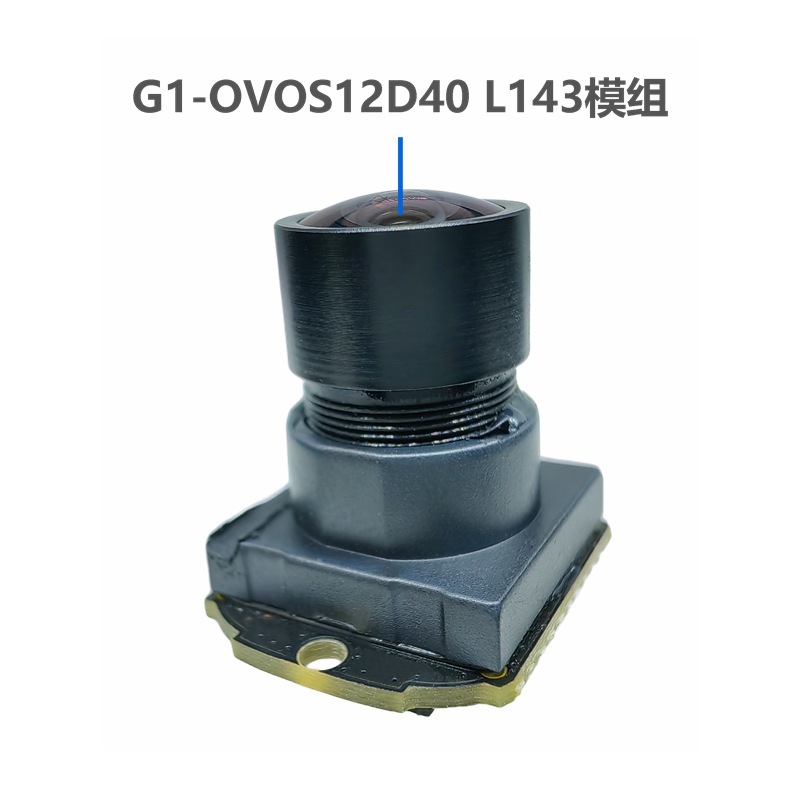

OS12D40 L143 wide Angle small lens camera module

I. Product overview

The OV OS12D40 color image sensor used in the G1-OS12D40 L143 wide Angle small lens camera module is a high-performance CMOS 1/2.49" image sensor that can provide 11.3 megapixel (4512x2512) image signal at up to 60fps. The pixels are 1.404μm x 1.404μm. Used with the G1 camera motherboard, connect the motherboard using the coaxial line. Can support shooting 11M pixel HD images, up to support 4K@60fps(interpolation), 4K@30fps video shooting. The size of the board frame is 14.45x18mm, and the size from the top of the module lens to the PCB board is 18.5mm.

2. Specification parameters

3. Description of hardware interface functions

The OS12D40 L143 wide-angle small-lens camera module is connected to the G1 camera motherboard through the coaxial line. Used with the G1 camera motherboard, it can support 11M pixel HD photography and video shooting up to 4K@30FPS.
