HP2002795 camera module housing

Product overview

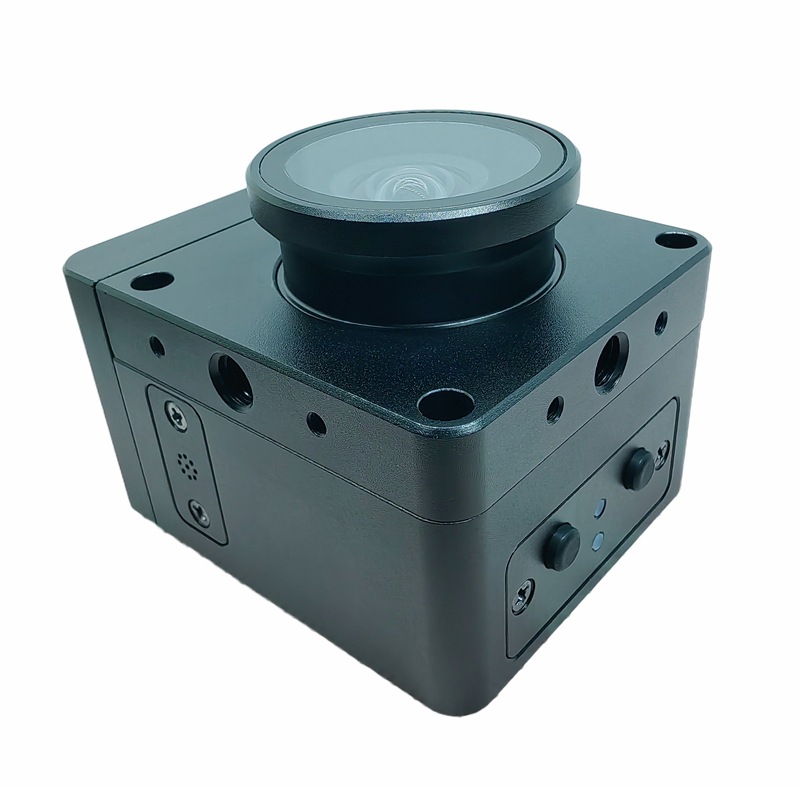

Camera module shell, using aluminum alloy material, with high-end texture, both durable and durable. Ports, keys, microphones, and distribution ports are all waterproof, and the complete housing is rainproof and dust-proof.

All four sides of the housing have standard 1/4 threaded holes for easy installation of the camera module. Shell lens, the use of high hardness hydrophobic glass, with high-quality hydrophobic function, can effectively prevent fingerprint residue, always keep the picture clear. At the same time, the camera module shell supports the installation of a C-port lens.

The shell has been connected to the interface wiring of the camera module, such as the DC power supply interface, network cable interface, serial port interface, PWM interface, ADC five-way key interface, etc. The wiring supported by the wifi board and the network port board is different.

This camera module shell is suitable for G1 camera module of 32*32mm module, such as G1 module with IMX377 camera module. If it is paired with the PTZ camera module, IMX258 optical anti-shake module, it is not suitable to use this camera module housing. The housing size is 62*50*49mm and the weight is 130g.

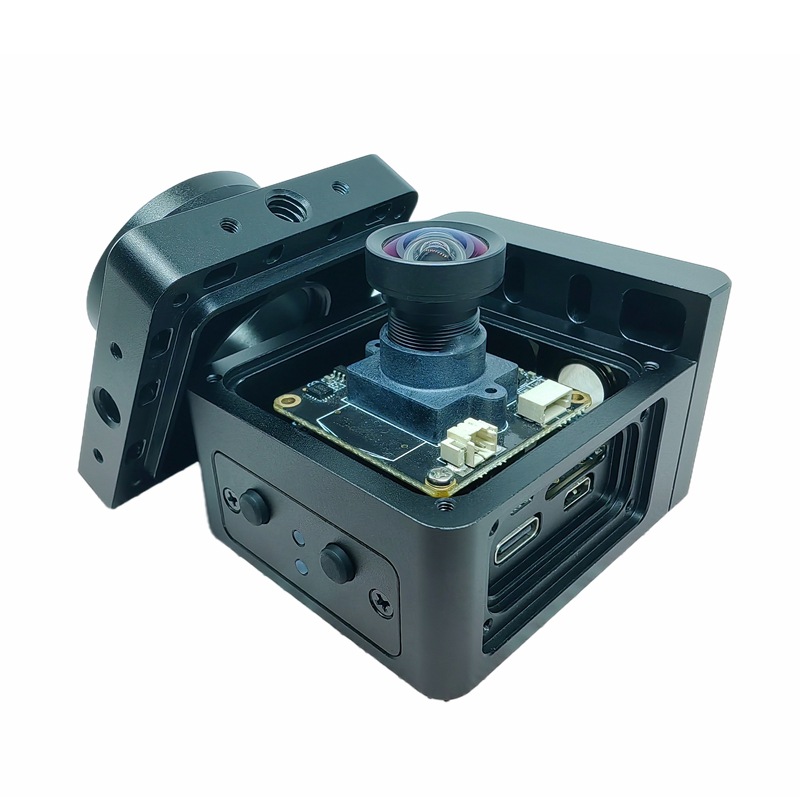

Assembly diagram:
