ATCB-8538MV689 1/3" OV4689 FH8538M 4MP AHD TVI CVI Analog 4 in 1 CCTV Security Camera Module BOARD UTC

Image Sensor :1/3" Color OminiVision CMOS
Model: FH8538M+OV4689
Color CMOS module, 4MP 4 in 1
Excellent Performance ,Stable Quality
4MP Image Quuality, Effective Pixels up to 2688X1520
OSD Function, PAL/NTSC Support UTC /OSD
32cmx32cm, and 38x38cm

SKU	ATCB-8538MV689
Sensor	1/2.9" OV4689+FH8550D
Effective Pixel	2688(H)x1520(V)
Resolution	4MP
Pixel Size	2.0um x 2.0um
Shutter Speed	1/30(1/25) ~ 1/10000 Sec
White Balance	Auto/User/Push/Hold
Day/Night	Color/B&W/Auto/EXT
Backlight Compensation	0 ~ 16
Auto Gain Control	1 ~ 5
HLC	OFF / ON
Motion OSD	OFF / ON
Mirror/Flip	OFF / ON
S/N Radio	>38.3dB
Video Output	AHD/TVI/CVI/CVBS(ANALOG)
Operation Temperature	-20℃ to 60℃
Working Humidity	Relative humidity less than 90 %
Transmission Distance	Up to 500meters
Power	DC12V 90MA, Max 1W without LED
PCB	1.6T, 4Layers
Size	3232/3838 (mm)

OSD MENU

1.AE	1.BRIGHTNESS	◄ 7 ►
	2.EXPOSURE MODE	◄ GLOBE ► / ◄ CENTER ► / ◄ BLC ►
	3.GAIN	◄ 5 ►
	4.RETURN
2.AWB	1.MODE	ATW
		MWB	RGAIN
			BGAIN
			RETURN
	2.RETURN
3.DAY-NIGHT	1.MODE	AUTO / COLOR / B/W / EXT
	2.RETURN
4.IMAGE ENHANCE	1.CONTRAST	◄ 3 ►
	2.SHARPNESS	◄ 5 ►
	3.COLOR GAIN	◄ 5 ►
	4.DNR	◄ 4 ►
	5.MIRROR	◄ DEFAULT ► / ◄ H ► / ◄ V ► / ◄ HV ►
	6.RETURN
	7.DWDR	OFF / ON
	8.RETURN	←
5.VIDEO OUTPUT	1.HD	AHD / TVI / CVI / CVBS
	2.VIDEO STANDARD	4MP 15fps /4MP 25fps /4MP 30fps /5MP 20fps /5MP 12.5fps
	3.REBOOT&APPLY	◄ 14 ►
	4.RETURN	◄ 3 ►
	5.TRANSFER MODE	AHD / CVBS / CVI / TVI
	6.FORMAT	NTSC / PAL
	7.DWDR	OFF / ON
	8.RETURN	←
6.LANGUAGE	ENGLISH / 繁体中文 / 简体中文
7.RESET	←
8.SAVE-EXIT	←
9.EXIT

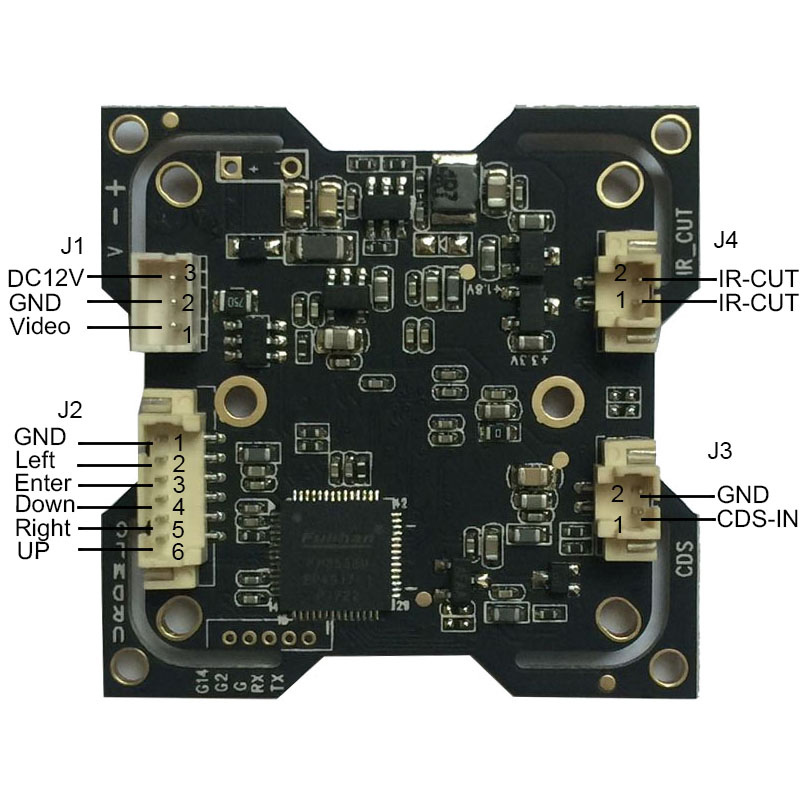

J2 6pin 1.25mm		J4 2pin 1.25mm		J1 3pin 1.5mm		J3 2pin 1.25mm
1	GND	1	IR-CUT1	1	VIDEO	1	CDS-IN
2	LEFT	2	IR-CUT2	2	GND	2	GND
3	ENTER			3	DC 12V
4	DOWN
5	RIGHT
6	UP

How to shift AHD/CVI/TVI/CVBS Signal by OSD?

Operation Instruction :

Press Key for 5 seconds

Up CVBS
Right TVI
Down CVI
Left AHD

Compitable Accessories

Compatible IR-CUT

ICR204-M12 8MP 1/2.5" 20/22mm IR CUT filter M12 lens mount double filter switcher for cctv camera Metal

From $1.10

,

ICR203 CCTV Camera IR-CUT Filter For IP Camera Board 1/1.8" IMX178 IMX185

From $2.80

Compatible Cable

CBW-AHD-OSD/CBB-AHD-OSD AHD DC power and OSD menu Key tail cable for AHD camera module

From $0.71
