4K UHD 8MP IMX585 USB Camera MJPEG YUV Module 60 fps USB Camera 3.0 UVC Driver Free

SKU:

UCB-8M585-L12N

Category: USB UVC Camera Module

$335.00

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $298.00 - $335.00

Sensor Optical Format: 1/1.2"

Imaging Sensor: IMX585

Bottom Group

Description

Item	Parameter
Product Model	UCB-8M585
CMOS / Image Sensor Model	SONY IMX585
Lens Size (Sensor Format)	1/1.2 inch
USB Cable	1-meter cable as standard; 1m / 2m / 3m cables available(Default 1m); custom interfaces supported
Single Pixel Size	2.9μm × 2.9μm
Signal-to-Noise Ratio (Sensor)	TBD
USB Interface Type	USB3.0
Supported Resolution & Frame Rate (USB3.0) MJPG (Compressed Format) / YUV (Uncompressed Format)	MJPG: 38402160@60fps 25601440@60fps 19201080@60fps 1280720@60fps YUV: 38402160@10fps 25601440@10fps 19201080@60fps 1280720@60fps
Supported Resolution & Frame Rate (USB2.0) MJPG (Compressed Format) / YUV (Uncompressed Format)	MJPG: 19201080@30fps 1280720@30fps YUV: 1920080@5fps 1280720@10fps
Lens Viewing Angle	Optional lens for customers; contact customer service for special requirements
Signal-to-Noise Ratio (SNR)	38dB
Dynamic Range	81dB
Minimum Illumination	0.5lux
Focus Type	Fixed Focus (FF)
Operating Voltage & Current	5V, 280mA–350mA
Operating Ambient Temperature	0°C ~ 70°C
Storage Temperature & Humidity	-30°C ~ +80°C
Supported Operating Systems	Windows 10, Windows 11 Mac OS X 10.4.8 and above (UVC compliant) Linux, Android, Raspberry Pi, Kylin OS (UVC compliant)
Application Fields	Portrait cameras, electronic microscopes, live streaming equipment, large-screen commercial displays, street night shooting, low-light vision products
Driver-Free Protocol Supported	USB Video Class (UVC)
Shutter Type	Rolling Shutter

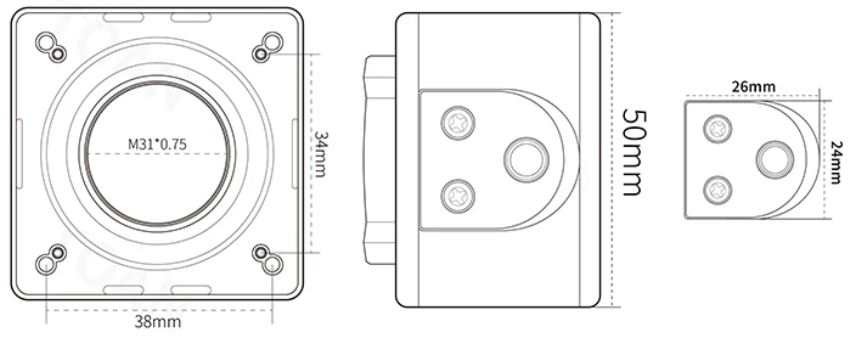

PCB Board Size	38*38mm stacked board; 2D dimension drawings available upon request
Power Supply Mode	USB BUS POWER, USB3.0 Female Port
Adjustable Parameters	Camera attributes, AE parameters
Diagonal Viewing Angle of Lens	Customizable range from 30° to 160° per customer demand; contact customer service for special requirements
