3MP HD USB camera board with 1/2 MT9T001 Sensor RAW BMP JPEG PNG TWAIN DirectShow ROI Halcon

Empty

Total: $0.00

Hupuu Electronics

SKU:

UCM-3CWH

Category: Camera Board USB UVC Camera Module

$169.00

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $145.00 - $169.00

Effective Pixels: 3MP

Description

Features

3MP HD USB camera board with 1/2 MT9T001 Sensor

Camera with 32MB cache, image transfer speed and stability, faster than ordinary USB2.0 camera 34%;
All kinds of light source environment have good color reproduction and flower seedling permeability;
Standard 39*39 module size;
Very low power consumption;
Support TWAIN and DirectShow interface;
Support high-peed preview for ROI and full-resolution photo;
Provide development kit, SDK supports VC, VB, C# development language, support Halcon, LabView, Matlab, OpenCV and other image processing software and development platform.

Model	UCM-3CWH
Sensor Model	MT9T001
Sensor Size	1/2" CMOS Color
Max Resolution	2048×1536(3M)
Resolution&FPS	2048×1536:12FPS
	1920×1080(ROI):18FPS
	1024×768(ROI):40FPS
	1024×768(2x2BIN):33FPS
	640×480(ROI):84FPS
	ANY ROI
Pixels Size	3.2μm×3.2μm
Scan Type	Progressive Scan
Shutter Scan	Electronic Rolling Shutter
Exposure Time	0.047-3000 ms
Data Format	8bit Raw，24bit BMP
Sensitivity	>1.0V/Lux-sec(550nm)

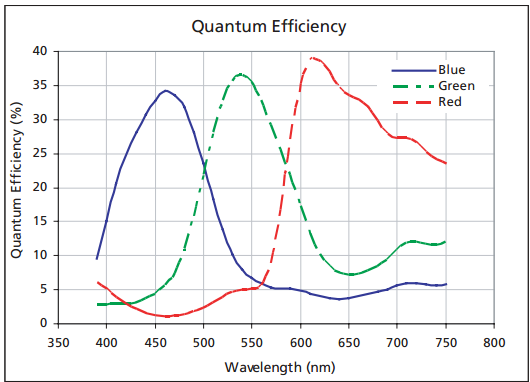

Spectral Response	380nm-650nm(Filter Included)
SNR	43 dB
Wide Dynamic Range	61 dB
Definition	>850 Lines
Exposure Mode	Auto/Manual/Area
White Balance	Manual/One-Time/Area
Firmware Update	Remote Update
Camera ID	Users-Defined
Image Format	RAW / BMP / JPG / PNG
Image Processing	Image Size,Lightness,Exposure time;Gain;GAMMA;Contrast;Black Level;Sharpness;Noise Reduction;3D Noise Reduction；RGB Gain；Saturation
System	Windows XP(32bit); Win7/8/8.1/10(32/64bit) （Better Win7or higher）
Software Interface	TWAIN，DirectShow
Interface	USB2.0 Type-B，480Mb/s
LED Guide	Power on during Stand-by ;Flashing during working
Power	USB5V，Working:1W，Stand-by0.7W
Operating Conditions	Temperature：0℃ ~ 50℃；Humidity：10% - 90%RH（No Condensation）
Storage Conditions	Temperature：-20℃ ~ 60℃； Humidity：10% - 60%RH
Lens Mount	C Mount
Size	39x39mm
Weight	Approx. 19g
