1/3.6" GC1024 + V20E (FH8532E) 1MP 720P AHD CVI TVI Analog 4 in 1 Security CCTV HD CMOS Camera Module Board

Features:

I. Specification: 1/3.6" 4 in 1 Color CCTV board camera

II. Model No.: A4CB-85321024

III. Main Feature:

1. Hybrid board Camera 4 in 1

2. AHD/CVI/TVI/CVBS signal shift with OSD Joystick

3. Excellent performance, clear and bright picture

4. Size (LxWxH):32x38x9mm

Detail Specifications
Sensor	1/3.6＂　GC1024 + V20E（FH8532E）
System	PAL	NTSC
Effective Pixel	PAL: 1280(H)×720(V)	NTSC: 1280(H)×720(V)
Illumination	0.1Lux@(F1.2,AGC ON)，0LUX with IR
Shutter	1/50～1/100000s	1/60～1/100000s
D/N	EXT (Default)/AUTO/COLOR/B/W
Synchronously	Internal
FPS	720P@25fps	720P@30fps
S/N	>46dB
Video output	1.0V p-p Default AHD, Shift to TVI/CVI/CVBS by OSD
OSD Menu
Exposure	BRIGHTNESS / EXPOSURE MODE / GAIN
BW	ATW/MWB
D/N MODE	Infrared/Internal AUTO/COLOR/B&W
Video Setting	Contrast/Sharpness/COLOR GAIN/DNR/Format/DWDR
Language	CHN1/ESPANOL/CHN2/ITALIANO/ENGLISH
Reset
Common
Operation Temperature	-20℃ to 60℃
Working Humidity	Relative humidity less than 95 %
Power	DC12V(±20%) - 50MA

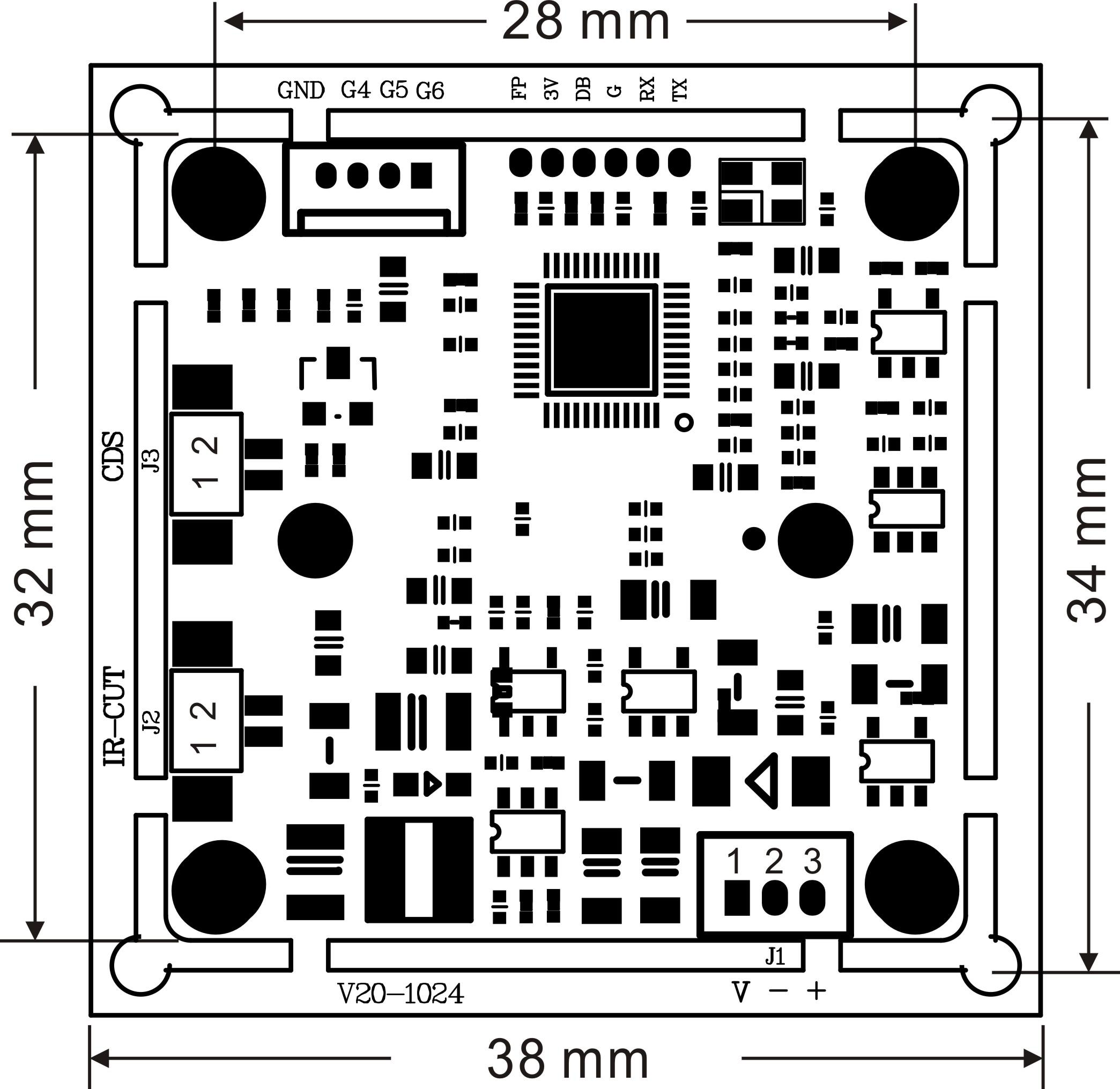

Size	3232/3838（mm）

J1		J3		J2
1	VIDEO	1	CDS	1	IR-CUT1
2	GND	2	CDS	2	IR-CUT2
3	DC12V

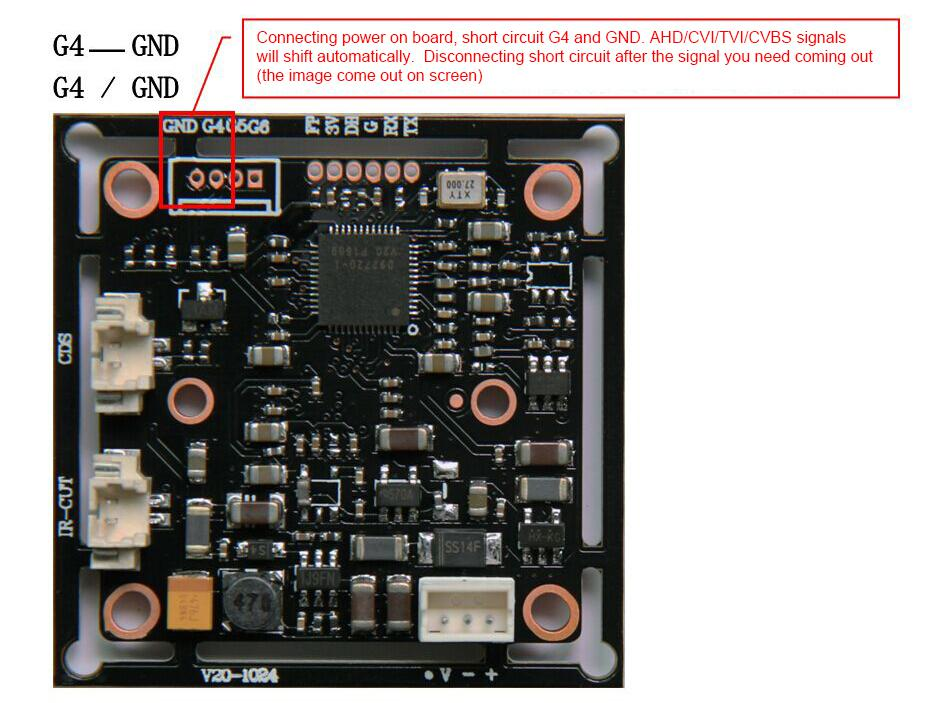

How to shift AHD/CVI/TVI/CVBS Signal?

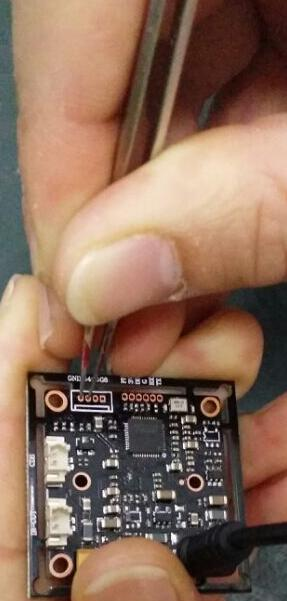

Connecting power on board, short circuit G4 and GND. AHD/CVI/TVI/CVBS signals will shift automatically. Disconnecting short circuit after the signal you need coming out (the image come out on screen).

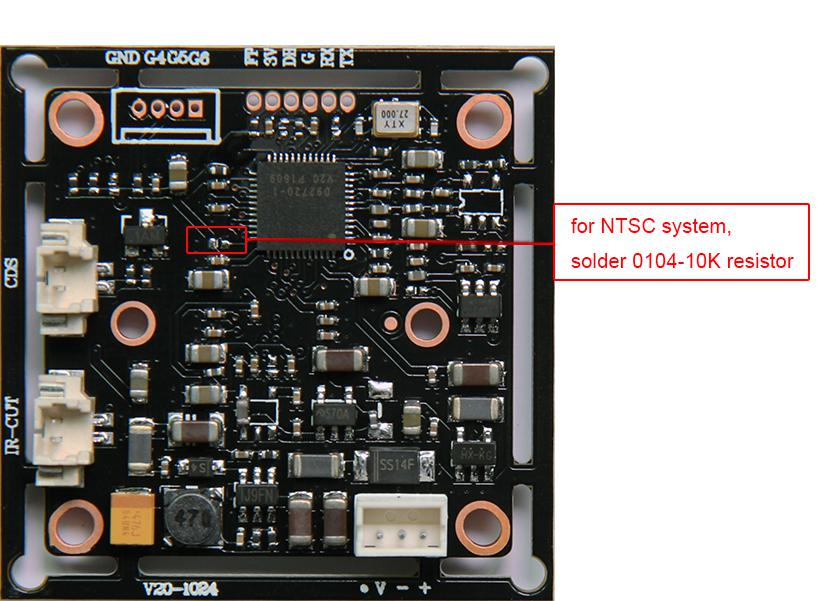

NTSC and PAL?

Shipping

Shipping fee table:

Quantity:

Ship to:

Remark:
For orders with a high total amount, please choose DHL, EMS other than Airmail, ePacket.

A4CB-8532EG064 1/3.6" GC1064 + V20E (FH8532E) 1.3MP AHD CVI TVI Analog 4 in 1 960P Security CCTV CMOS HD Camera Module Board

1/4" GC1034 + V20E (FH8532E) 1MP AHD CVI TVI Analog 4 in 1 Security HD CCTV CMOS Camera Module Board

AE	BRIGHTNESS	1-20
	EXPOSURE MODE	GLOBE / CENTER / BLC / FLC
	GAIN	1-8
	RETURN
BW	MODE	ATW / MWB
BW	RETURN
DAY-NIGHT	MODE	EXT / AUTO / COLOR / B&W
DAY-NIGHT	RETURN
VIDEO SETTING	CONTRAST	1-50
	SHARPNESS	1-20
	COLOR GAIN	1-31
	DNR	1-15
	TRANSFER MODE	AHD / CVBS / CVI / TVI
	FORMAT	PAL / NTSC
	DWDR	ON / OFF
	RETURN
LANGUAGE	ENGLISH / 中文 / ESPANOL / FRANCAIS / 繁体中文 / Pyccknn / ITALIANO / EAAHNIKA / 한국어 / Portugues
RESET
SAVE-EXIT
EXIT
