1/3" AR0230 + V30 CMOS BOARD 2.0 MegaPixel 1080P 4 in 1,FOR CCTV AHD CVI TVI Analog HD Seciruty Camera

SKU:

A4CB-8536R230

Category: AHD CVI TVI Analog 4 in 1

Video Coding Format: AHD Analog (CVBS) CVI TVI

$9.74

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $8.29 - $9.74

Imaging Sensor: AR0230

Effective Pixels: 2MP

Bottom Group

Description

Packing list:

1 x 1/3" AR0230 + V30 CMOS BOARD 2.0 MegaPixel 4 in 1,FOR CCTV AHD,CVI,TVI,CVBS CAMERA(Default AHD-H)

----------------------------------------------------------------------------------------------

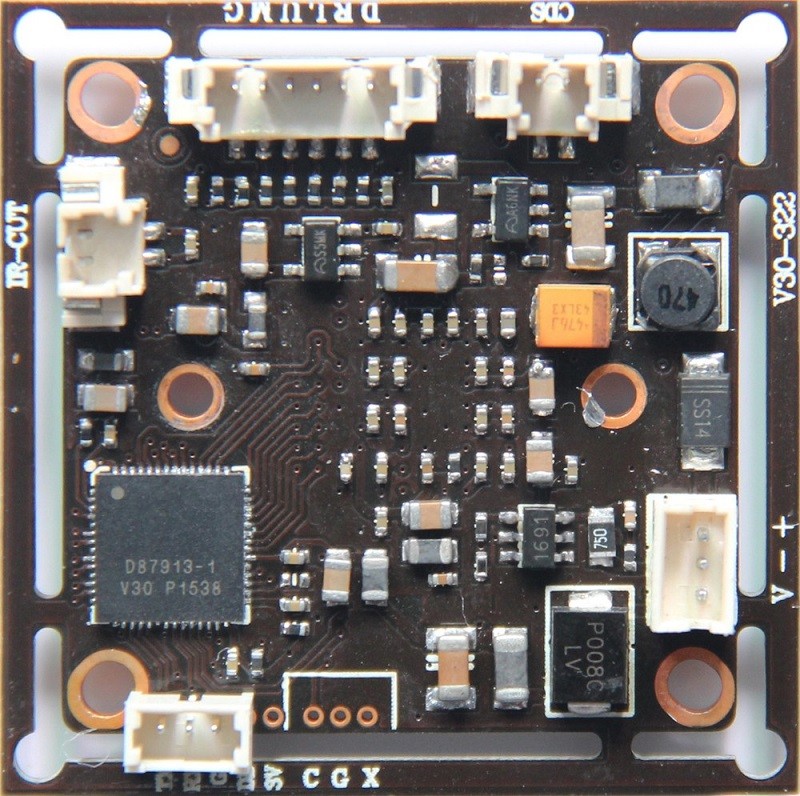

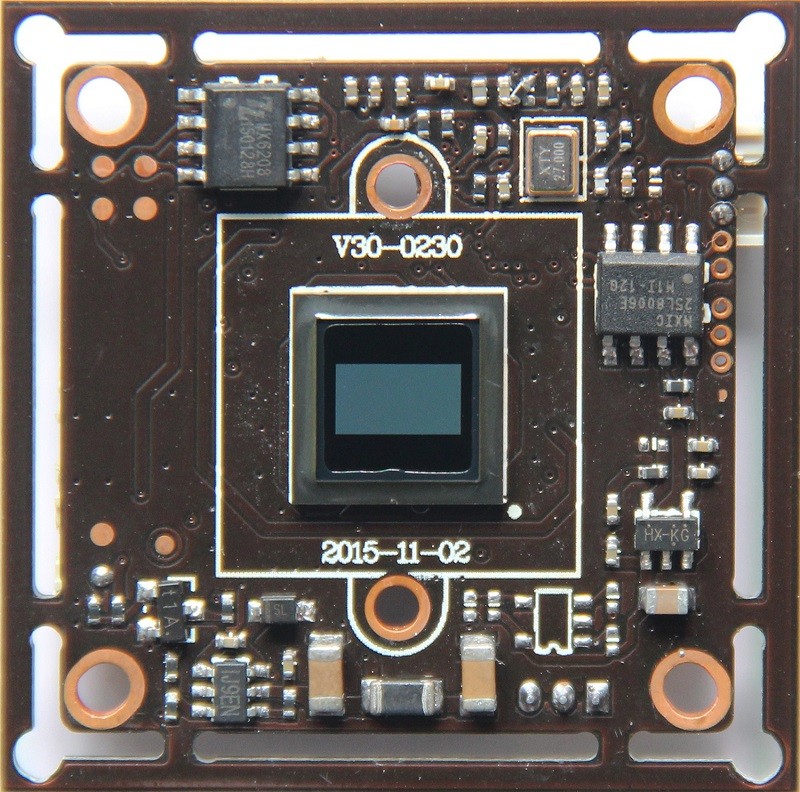

1/3" AR0230 CMOS sensor with Hass latest V30 Program.

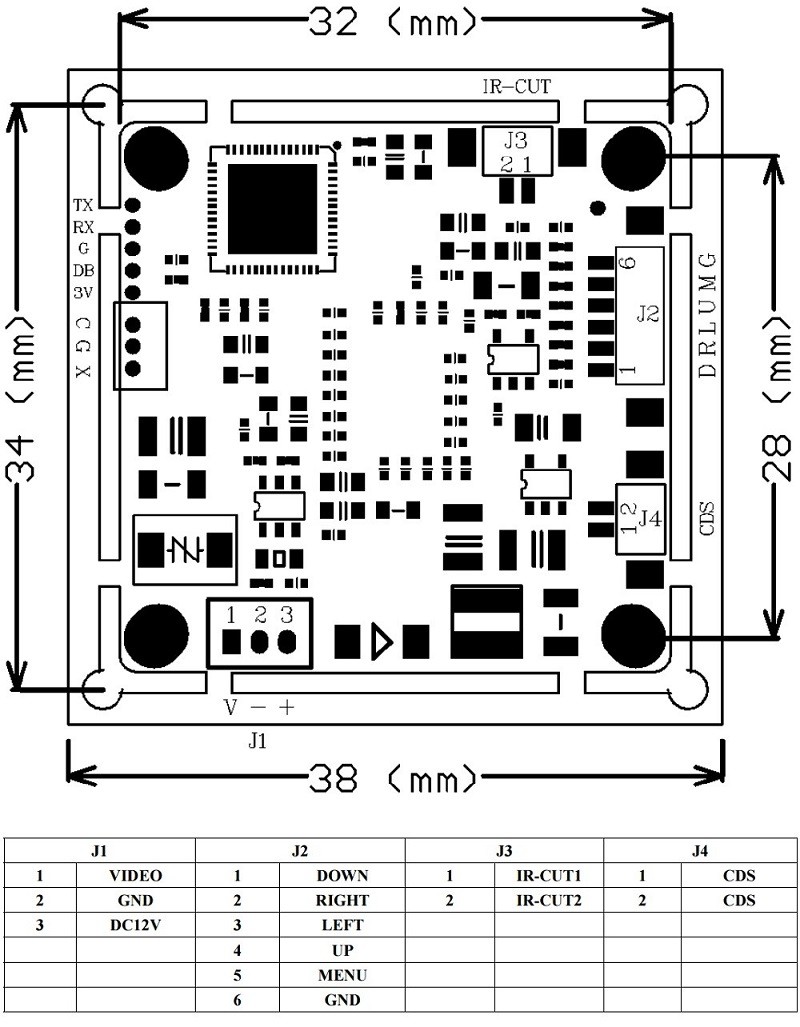

standard single 38mm * 38mm / 32mm * 32mm specifications

Support Day & Night (branchedHold optional IR-CUT) in the infrared, support photoresistor signal linkage.

H.264 video encoding,the highest resolution of 1920 * 1080,Color 0.01Lux & F1.2.

Support OSD Menu

4 in 1,AHD,CVI,TVI 2.0,Analog

The factory default is AHD signals:OSD Key control as follows,

Different signals can be switched

Up: AHD signal. Down: CVI signals. (Press 5 seconds to switch)

Left: TVI 2.0 signal. Right: CVBS signal. (Press 5 seconds to switch)

Model

V30-0230 (2.0 MegaPixel)

Chipset

1/3" COMO AR0230 + V30

System format

PAL

NTSC

Effective Pixels

PAL:1920(H)&times 1080(V)

NTSC:1920(H)&times 1080(V)

Minimum illumination

Color 0.01Lux & F1.2

Horizontal resolution

AHD: 2.0 MegaPixel 1080P, Analog: 2000 TVL

Scanning Frequency

50Hz

60Hz

Gamma

0.45

Electronic shutter speed

1/50~1/100000s

1/60~1/100000s

SNR

&ge 46db

Video output

1.0V p-p

Operating temperature

-20 &ordm C - 50 &ordm C

Working humidity

Relative humidity less than 95%

Power supply

DC12V (&plusmn 10%) 60mA

1 3 AR0230 + V30 CMOS BOARD 2.0 MegaPixel 4 in 1 FOR CCTV AHD CVI TVI CVBS CAMERA
