● Intelligent 0SD (menu) operating system. Extra powerful DSP memory function. Power down will not lost

data.

● High resolution, super sensitivity: using Japanese Panasonic SENSOR, has good color reproduction, providing clearer visual effects, 1/3 size. FULL SCREEN 1080P HD image can be displayed,  adapts to the color temperature of the light source over a wider range of color temperatures Change. Using unique digital processing technology to improve the target for low light source environments Shooting sensitivity reduces the unevenness and defect of optical signal processing.

● HLI (strong light suppression) is also super eclipse: for glare areas and compensation to achieve correct exposure selection within a specific area.

● WDR (Intelligent Wide Dynamic Range Compensation) (High/Medium/Low): If in the same screen When there is a big contrast between light and dark, it will cause overexposure and too dark, intelligent WDR The function can significantly improve the picture.

● Patent menu option: special patented design, showing the function characteristics by icon, straight obviously, the user can set the content at a glance. 11 optional languages.

● BLC (Super Backlight Compensation): When there is a bright light source on the back of the subject, the cause can be backlighting of the dark part of the subject caused by backlighting makes backlight compensation, making the subject more clear and clear.

● OSD 5 provides user-friendly menus for buttons, and supports button switching.

AHD/TVI/CVI/CVBS signal output, 4-in-1 signal output.

● 3D digital noise reduction, super sensitivity (gather accumulation).

● Support coaxial control signal function

● Wide voltage setting: DC power supply, the voltage range is between 10V~16V.

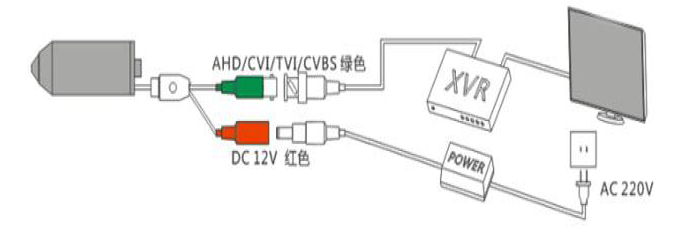

Connection:

DC12V interface is connected to DC12 power adapter (power supply DC12V - ≥1000MA);

The BNC is connected to the DVR, and then connected to the monitor from the DVR with an HDMI cable, and the monitoring is turned on.

The power supply is normally supplied and the DC drive line is connected. When the lens is screwed, the monitor screen can be seen.

Menu and Button operation:

Menu settings can be made via the OSD 5 button.

"UP" "DOWN" "LEFT" "RIGHT" "SET" are "upper", "down", "Left", "Right" and "Confirm";

Press OSD button "SET" button for 2 seconds to switch the video output.
