LF6-CS-3MP-F1.6-IR 6mm 3MP 1/2.5" CS Mount F1.6 Fixed CCTV Camera Lens

LF16-CS-5MP-F2-IR 1/2" 16mm focal length 5MP F2.0 CS mount IR correct Lens

LF4-CS-3MP-F1.6-IR 4mm 3MP 1/2.5" CS Mount F1.6 Fixed CCTV Camera Lens

SKU:

LF4-CS-3MP-F1.6-IR

Category: Monofocal CS Lens

$4.63

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $3.74 - $4.63

Effective Pixels: 3MP

Aperture: F1.6

Bottom Group

Description

Model					LF4-CS-3MP-F1.6-IR
Resolution					3 Megapixel
Image format					1/2.5"
Focal length					4mm
Aperture					F1.6
Mount					CS
Field Angle DxHxV(°)				" °	1/2.5		1/3		1/4
				D	108		94.6		66.6
				H	80.6		72		52.2
				V	58.8		52.2		38.4
Optical Distortion					45.00%		31.50%		20.50%
M.O.D.					0.3m

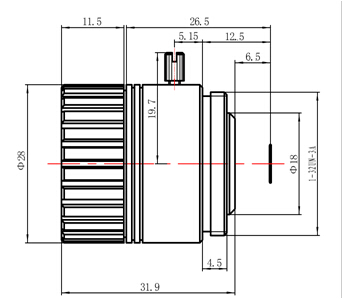

Dimension					Φ28x29.7mm
Weight					40±2g
Flange BFL					12.5mm
BFL					7.2mm
MBF					6.5mm
IR Correction					Yes
Operation				Iris			FIX
				Focus			/
				Zoom			/
Operating temperature							-20°C~+60°C
Size

Size tolerance(mm):			0-10±0.05			10-30±0.10			30-120±0.20
Angle tolerance					±2°
