LF3611-D14-3MP-AI-MZ 1/1.8" 3.6-11mm F1.5 manual zoom vari focal length D14 security CCTV camera Lens

LF3611-D14-6MP-F1.5 1/1.8" 3.6-11mm D14 6MP F1.5 Manual Zoom lens with IR-CUT dual filters switch

LF3611-D14-3MP-MZ-F1.5-IR 1/1.8" 3.6-11mm F1.5 manual zoom vari focal length D14 security CCTV camera Lens

LF3611-D14-3MP-AI-MZ 1/1.8" 3.6-11mm F1.5 manual zoom vari focal length D14 security CCTV camera Lens

SKU:

LF3611-D14-3MP-AI-MZ

$16.80

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $14.80 - $16.80

Effective Pixels: 3MP

Aperture: F1.5

Bottom Group

Description

Optical Specifications

NO.	Item		Specification
1	F No.		1.5±5%
2	Focal Length		3.6~11mm±5%
3	Optical Back Focal Length		6.24mm±0.1 (in air)
4	Flange distance		13.20±0.1 (in air)
5	Image circle		Φ9.0mm (1/1.8") (MAX)
6	Lens structure		8groups, 10 elements (All Glasses)
	Mount		Φ14
	Pre-lock ring nail hole torque		0.5-0.6kgf.cm
	After-lock ring nail hole torque		0.5-0.6kgf.cm
	Clamp Force		0.7-0.8 kgf-cm
9	FOV 4:3	Image	H	V	D
		1/1.8"	106.8-44.2	68.8-29.6	134.2-53
	TV Distortion		/	1/1.8" W:-14% T:-1.3%
10	Relative ill		/	1/1.8" W:58% T:65%
	CRA		/	11°
11	Spectral Transmission		>83% @550nm
			>85% @650nm
			>70% @850nm
12	Focus Range		0.2m ~ ∞
13	Resolution		3MP Center: 125LP/mm
14			3MP 0.7y: 100LP/mm
15	Weight		/
16	Operation		Focus	Manual
17			Iris	Manual/Auto (Optional)
18	Operating temperature		-20°C ~ +60°C
19	HSF&Safety		ROHS

Stepper Motor Technical Characteristics:

	CW->		<-CCW
A+	H	L	L	H
B+	H	H	L	L
A-	L	H	H	L
B-	L	L	H	H

Remarks:

1. Do not use strong force to rotate the front and rear adjusting ring to avoid damage to the gear box. All operations need to be driven by the driver board!

2. Supplier changes, motor wire color and pin definition change, but the actual output direction does not change, the customer does not have to change the program.

3. The color of the wire is for reference only. Actual motor rotation shall prevail.

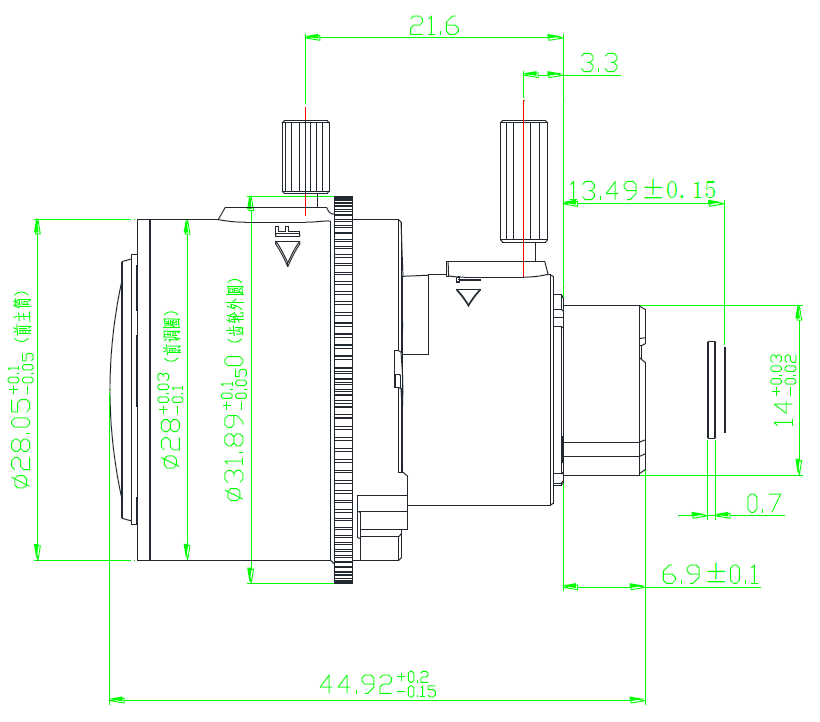

Unmarked tolerance: (unit mm)

0-10 ±0.05

10-30 ±0.10

30-120 ±0.20

Angle ±2°
