3MP High Resolution Design,  Apply to 720P and 1080P Camera.

Outstanding Coating Technology, All Lens Elements are with Multi-layer Broadband Coating to Get Best Image.

Model:					LF3610-CS-6MP-F1.6-IR-D
Parameter of  lens
Pixel					6MP
Image format					1/1.8″
Focal length					3.6-10mm
Aperture					F1.6
Mount					CS
Field Angle D×H×V(°)				"	1/1.8		1/2.5		1/3
				°	3.6mm	10mm	3.6mm	10mm	3.6mm	10mm
				D	156	51	117	41.9	93.2	35
				H	117	41.9	89.6	33.9	72.8	28
				V	81	31	64.8	25	53.8	20.9
Optical Distortion					-77.01%~-6.51% (MAX)
M.O.D.					0.3m
Dimension					Φ33×43.6mm
Weight					55±2g
Flange Back focal length					12.53mm
Back focal length					7.51mm
MBF					8.35mm
Operation			Iris		DC
			Focus		Manual
			Zoom		Manual
Operating temperature					-20°C~+60°C

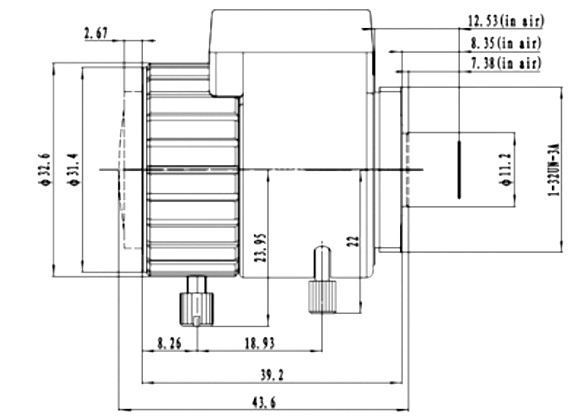

Size
Size tolerance(mm):		0-10±0.05		10-30±0.10			30-120±0.20
Angle tolerance					±2°
