LF2812-D14-3MP-F1.4-ICR

LF2812-D14-3MP-F1.4-IR-CD 2.8-12mm Auto Iris D14 mount CCTV security Camera lens 1/2.7" 3MP

LF2812-D14-3MP-F1.4-ICR-CD

SKU:

LF2812-D14-3MP-F1.4-ICR-CD

Category: 2.8-12mm D14 M14

$10.14

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $8.19 - $10.14

Effective Pixels: 3MP

Aperture: F1.4

Bottom Group

Description

Model					LF2812-D14-3MP-F1.4-ICR-CD
Resolution					3 Megapixel
Image format					1/2.7"
Focal length					2.8-12mm
Aperture					F1.4
Mount					D14
Field Angle DxHxV(°)				" °	1/2.7			1/3		1/4
					2.8mm		12mm	2.8mm	12mm	2.8mm	12mm
				D	140		40	120	36	82.6	27.2
				H	100		32	89	29	64	21.6
				V	72		24	64	21.6	27	16.2
Optical Distortion					64.5%~4.3%			48%~3.5%		24.1%~1.95%
M.O.D.					0.3m

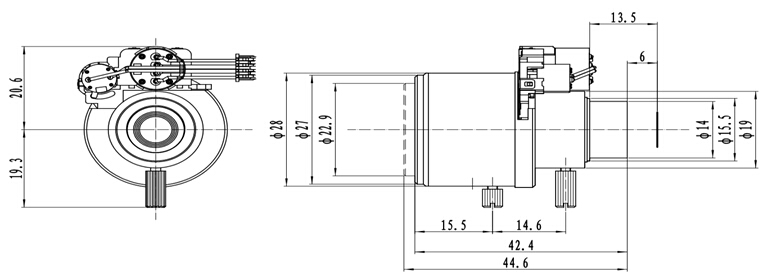

Dimension					Φ28x44.6mm
Weight					33±2g
Flange BFL					13.5mm
BFL					7.1~13.6mm
MBF					6mm
IR Correction					Yes
Operation				Iris				DC
				Focus				Manual
				Zoom				Manual
Operating temperature								-20°C~+60°C
Size

Size tolerance(mm):			0-10±0.05				10-30±0.10			30-120±0.20
Angle tolerance					±2°
