LF25-CS-5MP-F1.5 25mm CS 5MP 1/1.8" 19 degree Starlight lens

SKU:

LF25-CS-5MP-F1.5

Category: Lens 25mm CS

$5.20

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $4.70 - $5.20

Sensor Optical Format: 1/1.8"

Aperture: F1.5

Mount: CS

Bottom Group

Description

Precision Lens Elements, Assure the Stable Quality at Any Environments.

Environment-friendly Materials Used for ROHS and FCC Compliant.

Model:		LF25-CS-5MP-F1.5
Parameter of Lens
Pixel		5MP
Image Format		1/1.8" Φ9.7mm
Focal Length		25mm±5%
Aperture		F1.5±10%
Mount		CS
Field Angle D×H×V(°)	°	1/1.8" (IMX178) 3072*1728 2.4μm	1/2" (IMX385) 1920*1080 3.8μm	1/2.8" (IMX327 IMX290) 1920*1080 2.9μm	1/3" (GC4653) 2560*1440 2μm
	D	19.5°±3%	19.1°±3°	14.8°±3°	13.4°±3°
	H	17°±2°	16.6°±2°	12.8°±2°	11.7°±2°
	V	9.6°±2°	9.4°±2°	7.2°±2°	6.6°±2°
TV Distortion		0.7%
Relative Illumination		>51%
Chief Ray Angle		15°
Flange Back Focal Length		8.5mm±0.3
TTL		45.2±0.3
Lens Structure		4G
Operation	Iris	FIX
	Focus	/
	Zoom	/
Operating temperature		-20°C~+60°C

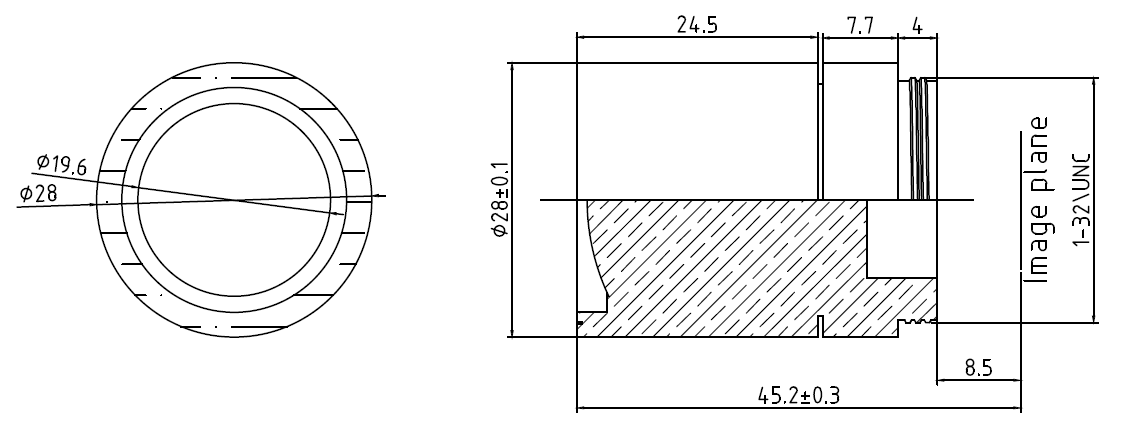

Size

FAQ

1. How to choose the FOV?

By default the FOV in specifications H:V is 4:3, if you use 16:9 sensor the FOV(H) will be wider, and FOV(V) will be smaller.

2. There are 1/1.8" 1/2" 1/2.5" 1/2.7" 1/3", Which one meets my needs?

The image format depends on the sensor format. The image format of lens should be equal or larger than the sensor format, otherwise there will be black area or corner.
