LF2.8-M12-8MP-F2.4 4G2P IRCUT 650nm 2.8mm M12 8MP Diameter 7.5mm 1/2.5" hd 4K camera lens

SKU:

LF2.8-M12-8MP-F2.4

Category: Lens 1/2.5" Lens Monofocal Lens M12 2.8mm M12

$11.56

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $7.50 - $11.56

Effective Pixels: 8MP

Aperture: F2.8

Bottom Group

Description

Precision Lens Elements, Assure the Stable Quality at Any Environments.

Environment-friendly Materials Used for ROHS and FCC Compliant.

Model:		LF2.8-M12-8MP-F2.4
Parameter of Lens
Pixel		8MP
Image Circle		Diameter 7.5mm
Image Format		1/2.5" (16:9)
Focal Length		2.8±5% mm
Aperture		F2.4±5%
Mount		M12×0.5
Field Angle D×H×V(°)	°	1/2.5" (IMX274)	1/2.7" OV2710	1/2.9" IMX323	1/2.8" IMX327 IMX290
	D	112	106	100.9	103
	H	100	95	92.6	94
	V	80	66	60.4	62
Distortion		<-1.1%	<-0.9%	<-0.7%	<-0.8%
CRA		<19.6°	<17.2°	<16°	<16.6°
Dimension		Φ18×18.26mm
Weight		6g
Flange Back Focal Length		3.74mm
Back Focal Length		4.92mm
IR		IR-CUT filter 650nm
Operation	Iris	FIX
	Focus	/
	Zoom	/
Operating temperature		-20°C~+60°C

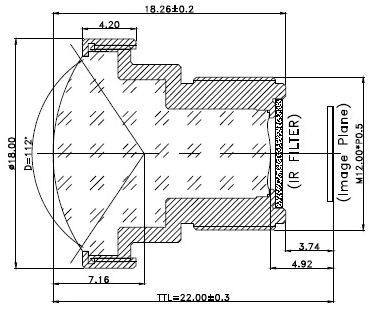

Size

FAQ

1. How to choose the FOV?

By default the FOV in specifications H:V is 4:3, if you use 16:9 sensor the FOV(H) will be wider, and FOV(V) will be smaller.

2. There are 1/1.8" 1/2" 1/2.5" 1/2.7" 1/3", Which one meets my needs?

The image format depends on the sensor format. The image format of lens should be equal or larger than the sensor format, otherwise there will be black area or corner.
