SKU:

LF0550-D14-2MP-AI-F2

Category: Varifocal M14 D14 Lens 5-50mm D14 M14

$29.00

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $25.20 - $29.00

Effective Pixels: 2MP

Aperture: F2.0

Bottom Group

Description

Model		LF0550-D14-2MP-F1.6
Parameter of Lens
Resolution		2MP
Image Format		1/2.7″ (Diagonal 6.87mm Max)
Focal Length		5-50mm
Aperture		F2.0
Mount		Φ14
Field Angle DxHxV(°)	Image Size	HFOV	VFOV	DFOV
	1/2.7"	50.9-7.6	27.8-4.3	59.2-8.7
	1.3"	41.8-6.4	30-4.8	53.2-7.9
	1/4"	33.1-5.1	18.4-2.9	38.1-5.9
Optical Distoration		1.2.7"	1/3"	1/4"
		W:-14.2% T:2%	W:-11.3% T:1.6%	W:-5.8% T0.85%
M.O.D		0.2m

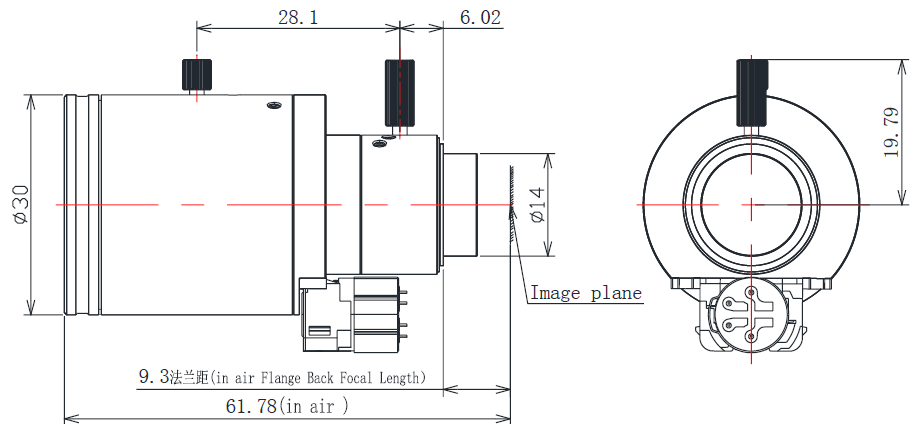

Dimension
Weight		26.8g
Back Focal Length		6.24mm
Optical Distoration
Operation	Iris	Auto
	Focus	Manual with Lock
	Zoom	Manual with Lock
Operating temperature		-20°C~+60°C
Size

Sizetolerance(mm):		0-10±0.05	10-30±0.10	30-120±0.20
Angle tolerance		±2°
