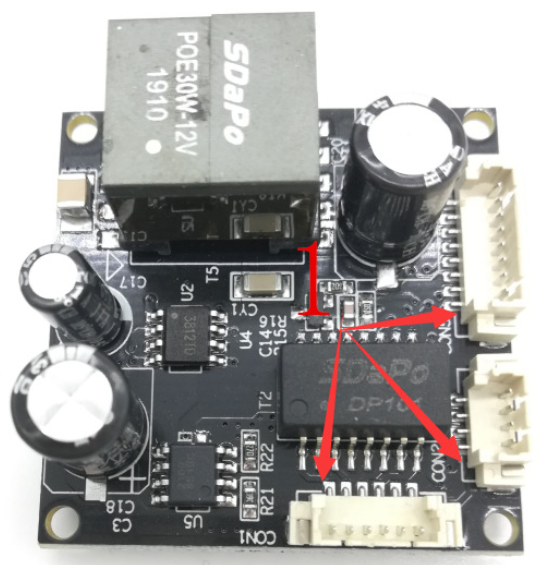

IPCB-EP3 standard 48V to 12V 2A 38mm 802.3af/at POE module for IP camera baord module

SKU:

IPCB-EP3

Category: PoE Separator

$4.50

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $4.00 - $4.50

Bottom Group

Description

Features:

1, Specifications: Meet the IEEE802.3af/at standard, class 4

2, safety: a perfect short circuit protection circuit, 1500V high voltage isolation

3, size: 38 * 38mm, suitable for IPC internal integrated design

4, integrated network filter, suitable for all IPC modules

5, compatibility: support for end-span (1,2 +/3,6-) and midspan (4,5-+/7,8-) two power modes

6, wide temperature work: -35 ° to 75 ° stable work

The main parameters:

(1) Typical value is 25°C, measured value under 48V power supply, for reference design only

(2) The recommended load value in Af mode should not exceed 1600mA (including IR-cut switching) to suit different environments
