Intelligent Rotating Bracket 255 Degree/Manual Vertical Rotate 60 degree RS485 PTZ intelligent Bracket For CCTV Camera

SKU:

78846

Category: Camera Bracket

$19.99

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $18.32 - $19.99

Bottom Group

Description

Main Features:

· Completely independent intellectual property.

· 255° Horizontal rotate. Left and Right stop positions can be freely adjustable.

· Built-in Intelligent decoder, intelligent preset position, intelligent scan function.

· Can set 1 home position.

· Rotating speed is adjustable, 6°/ 12°/ 20° per second.

· Vertical rotate 60 degree,Vertical rotate speed degree/SEC.

· DC 12V Input power, R-S485 control cable.

· Can be easily connected to HD camera’s R-S485 and DC 12V output.

· Easy to make fixed HD camera to be with rotate function, but no need extra wiring.

· Especially customized high quality and durable motor. Work stable and have long work life.

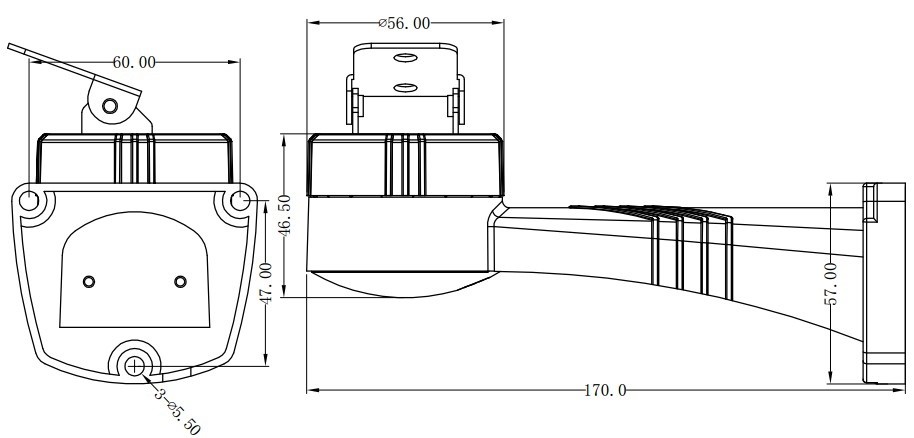

· Only 170mm length, easy to install, compatible with all kind HD camera and analog camera.

· Waterproof design, dust-proof and high temperature resistance, industrial level plastic material.

Application Advantage:

Can match with HD camera perfectly.

Can connect to IP module R-S485 directly.

Can be remotely controlled by NVR, platform software and smart phone, but no need extra wiring.

Competitive price. You can make the fixed lens camera rotate with lower cost.

Can reduce the quantity of fixed lens camera with this rotating bracket, then you can save much cost of the project. Let you have more competitive than other seller.

Especially suitable for indoor fixed camera to view wider angle.

Technical Parameters:

RS485 Electrical Rotating Bracket

Horizontal rotate angle 255 degree

Rotate speed6 degree/ 12 degree/ 20 degree optional

Vertical rotate Angle60 degree

Vertical rotate speed9 degree/SEC

Limited positionLeft & right limited position, Free adjustable

Limited position auto scan3 level adjustable

Preset position8 preset position

Preset position route1 tour route, 3 level of rotate speed

Fixed monitoring positionYes

Manual homing feature Yes

Control wireRS485

Interface.Power interface + RS485

Power inputDC 12V / 100mA

Power consumption0.9W

Work environment-25 degree -55 degree,Humidity less than 95% (no condensation)

Intelligent Rotating Bracket 255 Degree Manual Vertical Rotate 60 degree RS485 PTZ intelligent Bracket For CCTV Camera

Packing list:

Intelligent Rotating Bracket x 1pcs
