IF2653 1/3" 2MP 1920x1080 GC2053 FH8626 H.264 ONVIF IP Camera Board 38*38mm

Empty

Total: $0.00

Hupuu Electronics

SKU:

IF2653-LN

Video Coding Format: H.264

$11.30

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $10.30 - $11.30

Imaging Sensor: GC2093

Effective Pixels: 2MP

Description

2MP 1920*1080
Single board size: 38mm*38mm

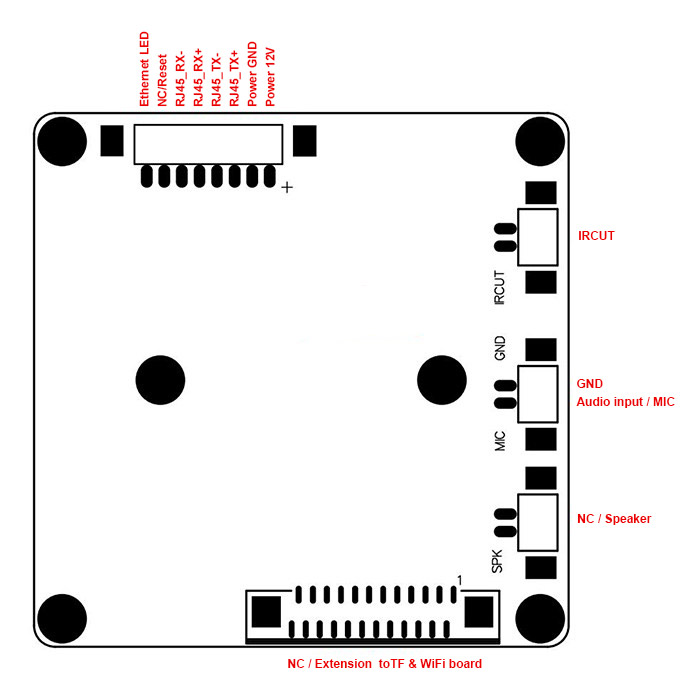

interface：audio input/output, reset, support D&N switch(optional IR-CUT) infrared sensor
H.264 video coding, support dual streaming, Max resolution: 1920*1080, color 0.005Lux@F1.2 B&W 0.05Lux@F1.2
support onvif protocol, able to integrate with most oversea and national platform software
suit for assemble metal dome and bullet。

Model No	IF2653
Hardware
Chipset	FH8626 + 1/3" GC2053 CMOS
Min Illumination	Color 0.005Lux@F1.2; B&W0.05Lux@F1.2
SNR	>50db(AGC OFF)
WDR	DWDR>80db
Interface
Audio input	1 CH Audio MIC input
Audio output	1 CH Audio output
IO interface	1 CH reset
Externsion	Optional support TF storage & WiFi board
Video coding
Coding format	H.264
Main streaming	1920*1080, 1-20 fps
Main streaming	1280*720 1-25(30) fps
Sub- streaming	640*360 1-25(30) fps
Video	128Kbps-8Mbps continue adjustable
Subtitle overlay	support channel name, date time, 4 group letters overlay, overlay position adjustable
Data transmission & storage
Data storage	Video, image files
Storage mechanism	Loop overwrite recording, alarm triggered recording
Alarm data transfer	Web browser, Video manage software, IO output
protocol	Standard ONVIF2.6 protocol
Client browse	Support IE6.0 and above browser，support client software to access
Mobile client	Support iOS, Android
General Specification
Working temperature	-20°C ~ +60°C
power supply	DC12V/POE(optional)
Device power	1.5W(MAX)
Device dimension	38(L) * 38(W) *10(H)mm (without lens)
IR-CUT pitch of holes	20mm
Device weight	0.05Kg
