CP1209-5A-B Uninterruptable Power 60 Watt DC12V 5A 9 Channel CCTV Security Regulated Camera Power Supply Box

SKU:

78866

Category: Indoor Power Supply

$55.66

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $51.02 - $55.66

Bottom Group

Description

Package Include:

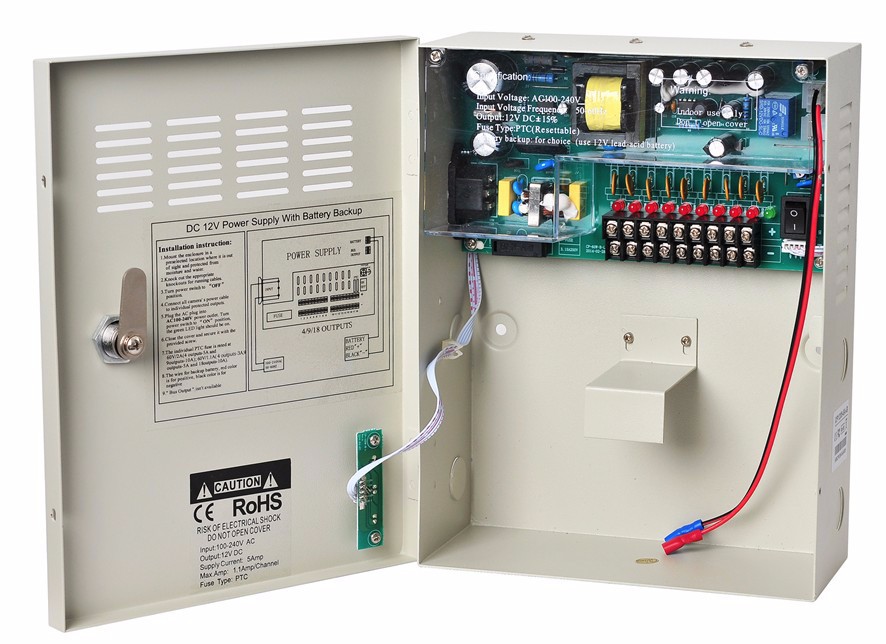

1 x CP1209-5A-B 9 Channel CCTV Security Regulated Camera Power Supply Box

1 x (CN,EU,UK,US,AU,Italy,Brazil,South Africa)Plug Standard Power Cable

Description

1, General Protection: Individual PTC(Positive Temperature Coefficient) Fuse and LED indicator on each output, when problem occurs, only affect the individual output, other outputs still working

2, Short Circuit Protection: When short circuit occurs, Individual PTC Fuse will cut off the circuit and when breakdown removed, PTC fuse will automatically be restoring circuit

3, High voltage protection: When high voltage occurs, the surge protection will be hit through to protect the connected device

4, Over Current protection: When over current occurs, the power supply will automatically switch to self-protection status, when it is removed, then it will return to normal state

5, Application: CCTV Camera, PTZ, IR Illuminators, Video Process,Access Control, etc.

6, Battery Backup: Use 12V Lead-acid battery.

Specification

Model Number	CP1209-5A-B
Plug Standard	CN,EU,UK,US,AU,Italy,Brazil,South Africa

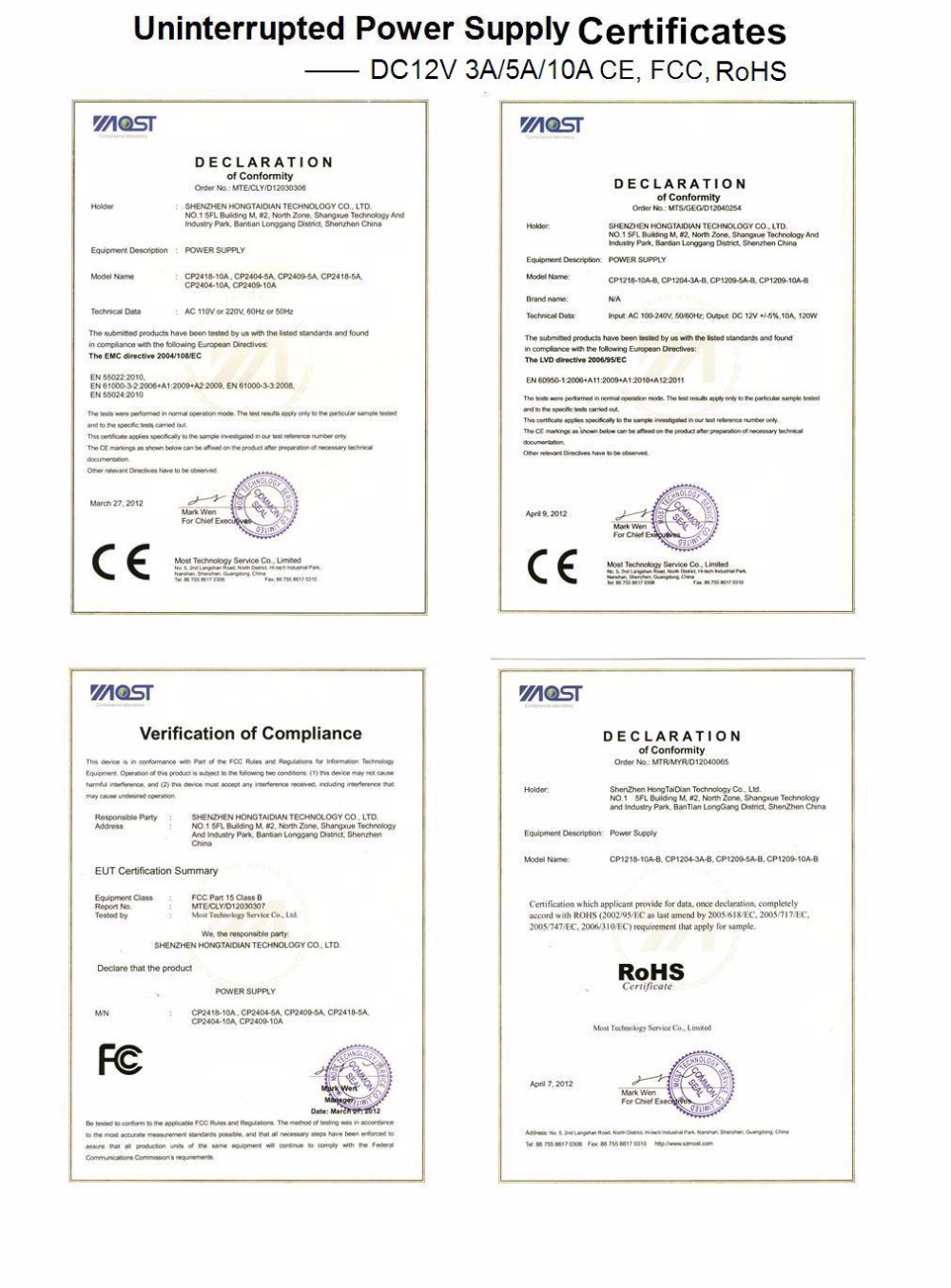

Certifcate	CE,FCC,RoHS
Input Voltage Range	AC90V-264V
Input Frequency Range	50Hz-60Hz
Output Voltage Range	DC12V+/-5%
Output Current	5 Ampere
Output Power	60 Watt
Output Ripple&Noise	≤70MV
Output Efficiency	≥83.2%
Output Channel	9Channel
Output Fuse Type	PTC or Glass Tube
Output Fuse Rating	1.1A
Environment Operatiing Amb.Temp	-30^oC~45^oC 20%~90%RH
Envionment Storage Temp	-40^oC~85^oC 10%~95%RH

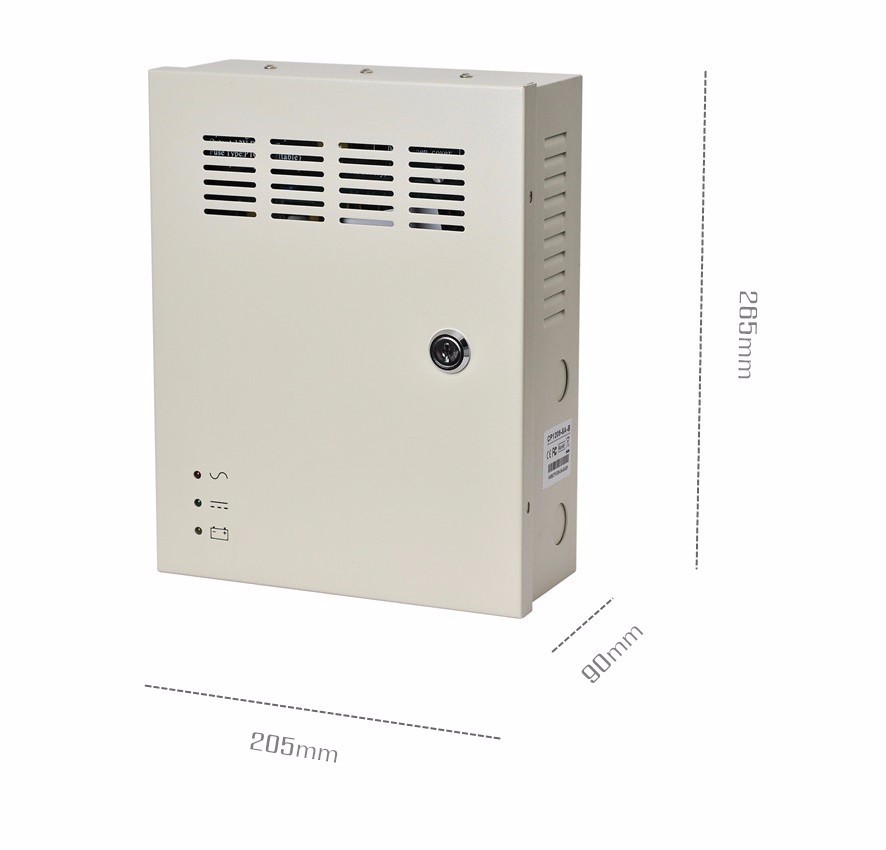

Product Dimension	26520590mm
Product Weight	2.1 Kg

CP1209 5A B Uninterruptable Power 60 Watt DC12V 5A 9 Channel CCTV Security Regulated Camera Power Supply Box Free Shipping
