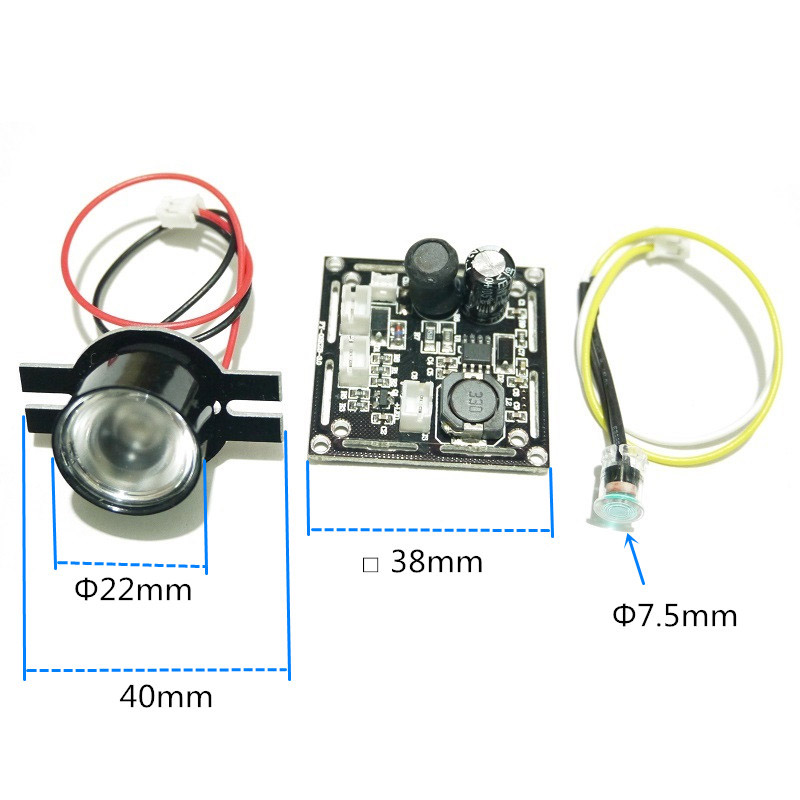

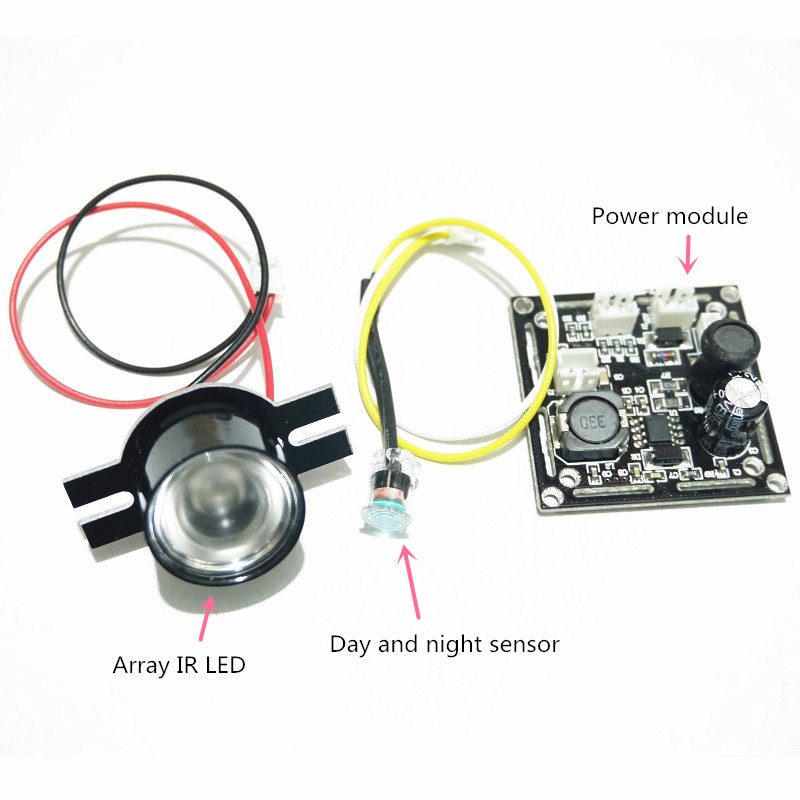

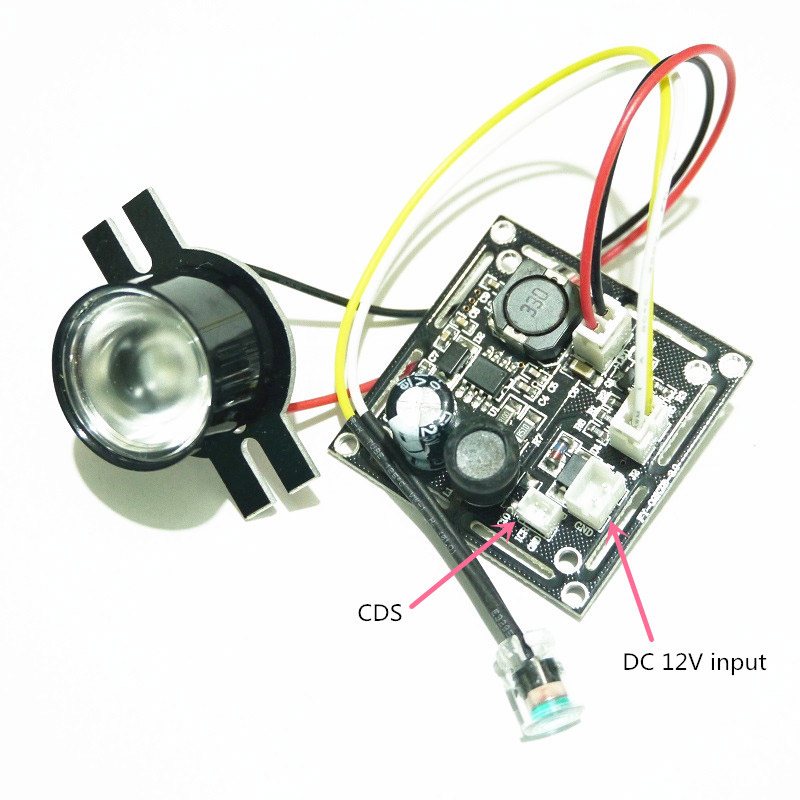

CCTV Accessories infrared light 2 pcs Array IR LED board for Surveillance cameras night vision diameter 22mm,For CCTV Camera DIY

Empty

Total: $0.00

Hupuu Electronics

SKU:

118780001

Category: IR LED Array Board

$2.69

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $2.10 - $2.69

Description

Packing list:

1 x 2 Array infrared light BOARD

-------------------------------------------------------------------------------------------

Non-daily lighting,only supports infrared camera

-------------------------------------------------------------------------------------------

infrared light

Product specification	20MIL
Shine the light	Infrared
LED	35mil
LED Quantity	2pcs
Whether waterproof	NO
Voltage	DC12V
Electric current	190-230mA
Product structure	Aluminum plate
Wave Length	850nM
Technical parameters	Beam Angle	Lens Focal Length	illumination Range
	15°	16mm	40 Meters
	30°	12mm	30 Meters
	45°	8mm	20 Meters
	60°	6mm	10 Meters
	90°	2.8/3.6/4mm	5 Meters
	with dome lens, IR - CUT interface, with import lens luminosity uniformity, working temperature control in 50 degrees Celsius, the service life of 20000 hours.
