main processor

H.265 high performance Soc（4GB DDR, 4GB EMMC）

Sensor type

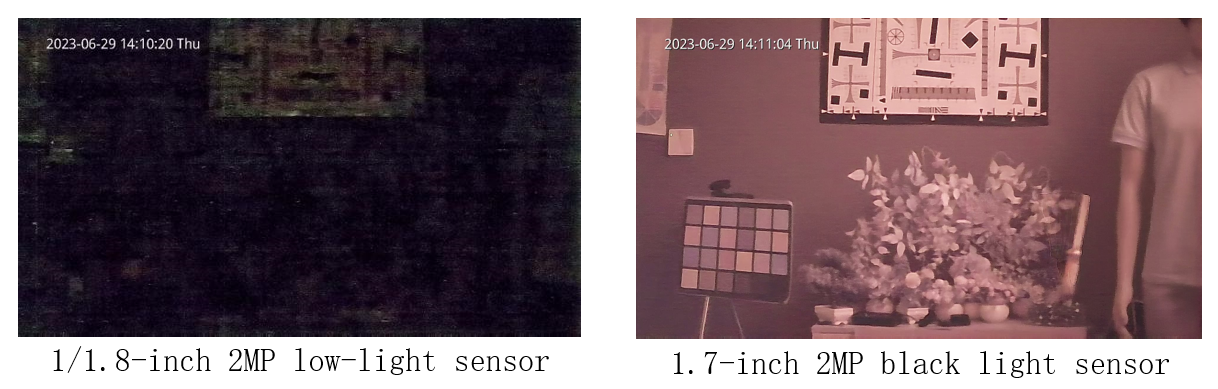

1.7-inch 2.3 Megapixel Progressive Scan CMOS

Electronic shutter speed

1/5 Sec to 1/50,000 Sec

minimum illumination

Color: 0.00001 Lux @(F0.95,AGC ON)；

Lens Specifications

E-mount Lens, 30mm(default), 50mm (optional), 70mm (optional), No lens(optional)

digital noise reduction

BNR SNR HNR Multiple modes.

AI Functions

AI Functions

With NPU, supports 4.0Tops of arithmetic, can   support integration of AI algorithms and application strategies

Coding standard

video coding standard

H.265/H.264/MJPEG

H.265 Encoding type

Main Profile

H.264 Encoding type

BaseLine Profile / Main Profile / High Profile

Video compression bit rate

32Kbps~16Mbps

Image Specifications

Maximum Image Size

1920(H)×1080(V)

code stream

triple streaming

Image Settings

Brightness, Contrast, Saturation, Sharpness, AGC, White Balance Adjustable

image enhancement

Wide Dynamic, Backlight Compensation, Glare Suppression, Electronic Stabilization, 2D Noise Reduction, 3D Noise Reduction

Day/night switching method

Automatic, Day, Night

region of interest

ROI supports up to 8 fixed areas

Network function

Intelligent Alarm

Motion Detection,   Blocking Alarm, Memory Full, Memory Error

memory function

Supports standard Micro SD/ Micro SDHC/ Micro SDXC(128G) for offline local storage and offline transfer.

Supported Protocols

IPv4/IPv6, RTSP/RTP/RTCP, TCP/UDP, HTTP, HTTPS,   DHCP, DNS, FTP, UPnP, DDNS, PPPoE, SMTP, Onvif V2.6, 802.1X, QOS, SNMP

common functionality

One Click Recovery,   Anti-flicker, Heartbeat, Password Protection, IP Address Filtering

Functional interface

network interface

1 RJ45 10M/100M/1000M Adaptive Ethernet Port

Reset Input

1 Reset button (valid for 3 seconds if pressed continuously)

Alarm Interface

2 Inputs, 2 Outputs

SD Card

Supports up to 128G

audio input

1 channel, MIC or line in 3.5mm Audio Interface

audio output

1 channel, 3.5mm audio interface (linear level, 600 ohm impedance)

HDMI

Supports HDMI2.0 output

General specification

Working temperature and humidity

-10°C ~ 60°C, humidity less than 95% (no condensation)

Power supply

DC12V±10%

Maximum power consumption

Classic power consumption 4W, Max 6W

protection class

Indoor applications

Dimensions (mm)

169*87*69mm Black Aluminum Housing

Weight (kg)

1.2Kg
