5MP 1/3" GC4653 + FH8538E AHD CVI TVI Analog / CVBS 4 in 1 Security CCTV HD UTC Camera Module board

Empty

Total: $0.00

Hupuu Electronics

SKU:

A4CB-8538EG4653

Video Coding Format: AHD Analog (CVBS) CVI TVI

$8.30

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $6.70 - $8.30

Sensor Optical Format: 1/3"

Imaging Sensor: GC4053

Effective Pixels: 5MP

Description

5MP 1/3" GC4653 + FH8538E AHD CVI TVI Analog / CVBS 4 in 1 Security CCTV HD UTC Camera Module board

Use GC4653 5MP progressive scan CMOS to capture the moving image.
Hybrid coaxial high-definition output, Excellent performance with clear and bright picture
0.001Lux@(F1.2,AGC ON)，0LUX with IR
Support IR-CUT,CDS external control ,D/N
Support OSD, Suitable for user-defined Settings.
Support DWDR, 2D-DNR
Support UTC Function

SKU	A4CB-8538EG4653
Detailed Spec.
Sensor		1/3"　GC4653+FH8538E
System		PAL(Default)/NTSC switch by OSD Menu
Effective Pixel		2704(H) x 1950(V)
Illumination		0.001Lux@(F1.2,AGC ON)，0LUX with IR
Shutter		AUTO
D/N		EXT（Default）/AUTO/COLOR/ B&W
Synchronously		Internal
FPS		5MP@20fps 4MP@25fps
Video output		AHD/ TVI / CVI / Analog (CVBS) Switch by OSD
OSD Menu
Exposure	Shutter/AGC/Brightness
WB	ATW / MWB
D/N mode	External Switch /Auto/Color/B&W
Adjustment	Contrast / Sharpness / Saturation / DNR
Language	中文/English
General
Operation temperature			-20°C to 60°C
Working humidity			Relative humidity less than 90%
Power			DC12V(±20%) - 80mA

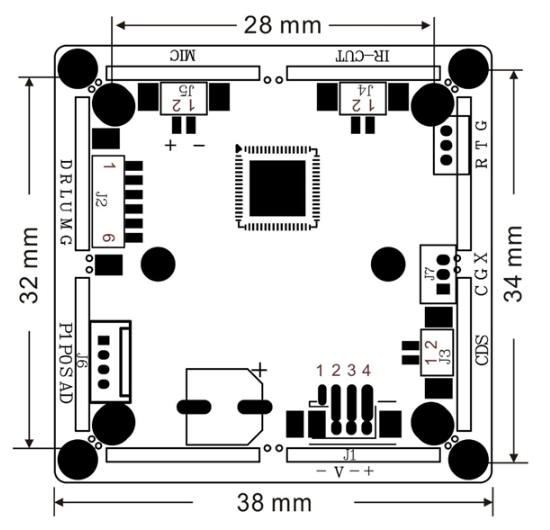

Size			3232/3838(mm)
