1/3" Sony 873 + NVP2090 CCD BOARD PAL 700TVL illumination 0.01 Lux FOR CCTV Analog CAMERA

Empty

Total: $0.00

Hupuu Electronics

SKU:

ACB-2090S873

Category: Analog Camera Board

$14.60

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $13.50 - $14.60

Horizontal Resolution: 700TVL

TV System: PAL

Description

1/3" Sony 873 + NVP2090 CCD BOARD NTSC 700TVL illumination 0.01 Lux FOR CCTV Analog CAMERA

single board

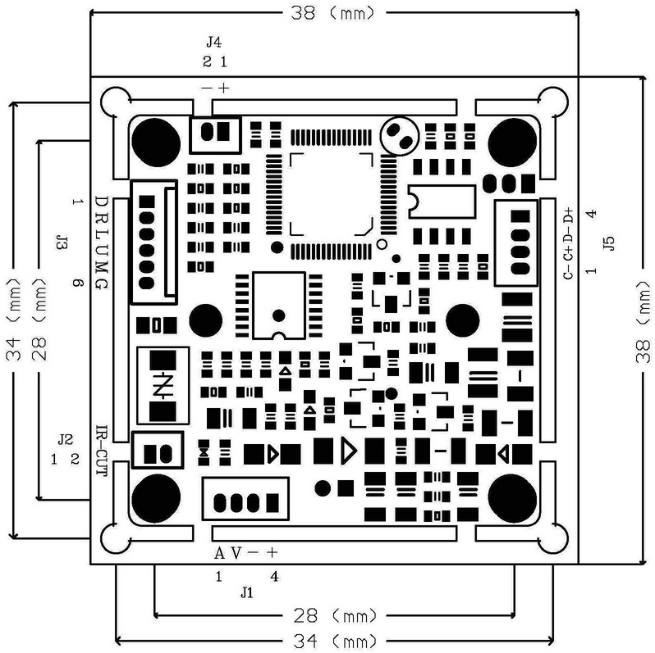

size: 38 x 38mm

Clear and bright picture

Sensor		1/3 Sony 960H CCD Sensor (960H CCD)
System		PAL:873+2090	NTSC:810+2090
Total Pixel		PAL:1020(H) x 596(V)	NTSC:1020(H) x 508(V)
Effective Pixel		PAL:976(H) x 582(V)	NTSC:976(H) x 494(V)
Scanning System		625lines, 50 fps	525lines, 60 f/s
Electronic Shutter		1/50 ~ 1/100000S	1/60 ~ 1/100000S
illumination		0.01 Lux (F1.2)
Resolution		700TVL
Function	DWDR	Off/On (0-63)
	2DNR	Off/On
	Image adjust	Lens Shad./2DNR/mirror / Font Color /contrast/sharpness/Display/NEG. Image
	HLC	Whole Day / only At Night
	exposure	Shutter/Brightness/AGC/DWDR
	Day/Night	Auto/Color/B/W/External Control
	Backlight	BLC/HLC/Off
	Special	camera title/motion detect/privacy cover/protocol/park line/version
	LANGUAGE	CHS/Espanol/Russian/German/Portuguese/French/Japanese/CHT/English
	White Balance	manual/ATW/AWB/ AWC→SET
	DPC	Support
	Exit	Save/Not Save/Reset
S/N		>48dB
Video Output		Composite Video Y/C output 1.0V p-p/75Ω
Operation Temperature		-10°C to 60°C
Working Humidity		Relative humidity 90 % RH
Power		DC 12V

Have questions, please leave a message, consult together and solve problems.

Lens	Video	Brightness	0-255
	Video	IRIS Speed	0-15
	Manual	Brightness	0-255
	DC	Brightness	0-255
	DC	IRIS Speed	0-15
Exposure	Shutter	Auto
		1/50
		FLK
		1/250
		1/500
		1/1000
		1/2000
		1/4000
		1/5000
		1/10000
		1/100000
	AGC	High/Middle/Low
	DWDR	ON/OFF	0-63
White Bal.	Manual	Color Temp	Manual	Blue 0-255
			Manual	Red 0-255
			Indoor
			Outdoor
		Blue
		Red
	ATW
	AWB
	AWC→SET
	ANTI.CRL
Backlight	BLC	Area Sel.	Area1/Area2
		Area State	ON/OFF
		Gain	0-255
		Height	0-15
		Width	0-15
		Left/Right	0-15
		Top/Bottom	0-15
	HLC	Level	0-255
		Mode	All Day
		Mode	Night Only
		MASK SKIP	ON	Height 0-15
				Width 0-15
				Left/Right 0-15
				Top/Bottom 0-15
			OFF
	OFF
Day&Night	EXT	D→N Delay	1/3/5/10/15/20/25/30 sec
	EXT	N→D Delay	1/3/5/10/15/20/25/30 sec
	Color
	Auto	D→N Level	0-224
		D→N Delay	1/3/5/10/15/20/25/30 sec
		N→D Level	0-255
		N→D Delay	1/3/5/10/15/20/25/30 sec
	B/W	Burst	ON/OFF
		IR Smart	ON	IR Gain 0-255
				Height 0-15
				Width 0-15
				Left/Right 0-15
				Top/Bottom 0-15
			OFF
		IR Level	High/Low
DPC	Start	Cover the lens then press enter key
	DPC View	ON/OFF
	LS Value	0-63
	DIFF.	0-63
	Area HS	1-255
	Area HE	1-255
	Area VS	1-255
	Area VE	1-255
Special	CAM Title	ON/OFF
	Motion	ON/OFF	4 Area
	Privacy	ON/OFF	8 Area
	Park.line	ON/OFF
	Image ADJ.	Lens Shad.	ON	Level 0-255
				H-Center 0-255
				V-Center 0-255
			OFF
		2DNR	ON	Level 0-15
		2DNR	OFF
		Mirror	ON/OFF
		Font Color	Font	0-15
		Font Color	ID&Title	0-15
		Contrast	0-255
		Sharpness	0-31
		Display	USER
			CRT
			LCD
		NEG.Image	ON/OFF
	COMM ADJ.	CAM ID	0-255
		Baud Rate	2400/4800/9600/19200/38400/57600
		Protocol	NEXTCHIP/PELCO-D/PELCO-P
		Display ID	ON/OFF
		ID POS
	Language	CHS/Espanol/Russian/German/Portuguese/French/Japanese/CHT/English
	Version	12 07 27
Exit	Save/Not Save/Reset
