• Intelligent OSD (Menu) operation system: With strong DSP memory function data will not lose when come across with outages.

• High resolution Super sensitivity: Using Japan SONY SENSOR super sensitivity with good color reducibility. 1/2.8" size, be able to display FULL SCREEN 1080P resolution image. Itself Adapt to the changes from a wider range of color temperature. And adopting unique digital processing technology. Excellent low illumination image quality.

• HLI(Light inhibition): Aiming at highlight zone to proceed with compensation in order to make fine exposure.

• WDR(Intelligent Wide Dynamic Range(High/Middlel/Low): If there is a large contrast between light and dark in the same picturey it will cause overexposure and overdarkness. and the image can be significantly improved with the function of intelligent WDR.

• Menu Options: Special patent design display features in the way of icon, intuitive, so that users can be clear at a glance set the content. Chinese/English/japanese/Korean 4 optional languages.

• BLC(Back Light compensation): While there are bright light on the back of the subject this product can carry out backlight compensation on the dark part of the subject result from backlighting. This aims at keeping overall brightness at balance.

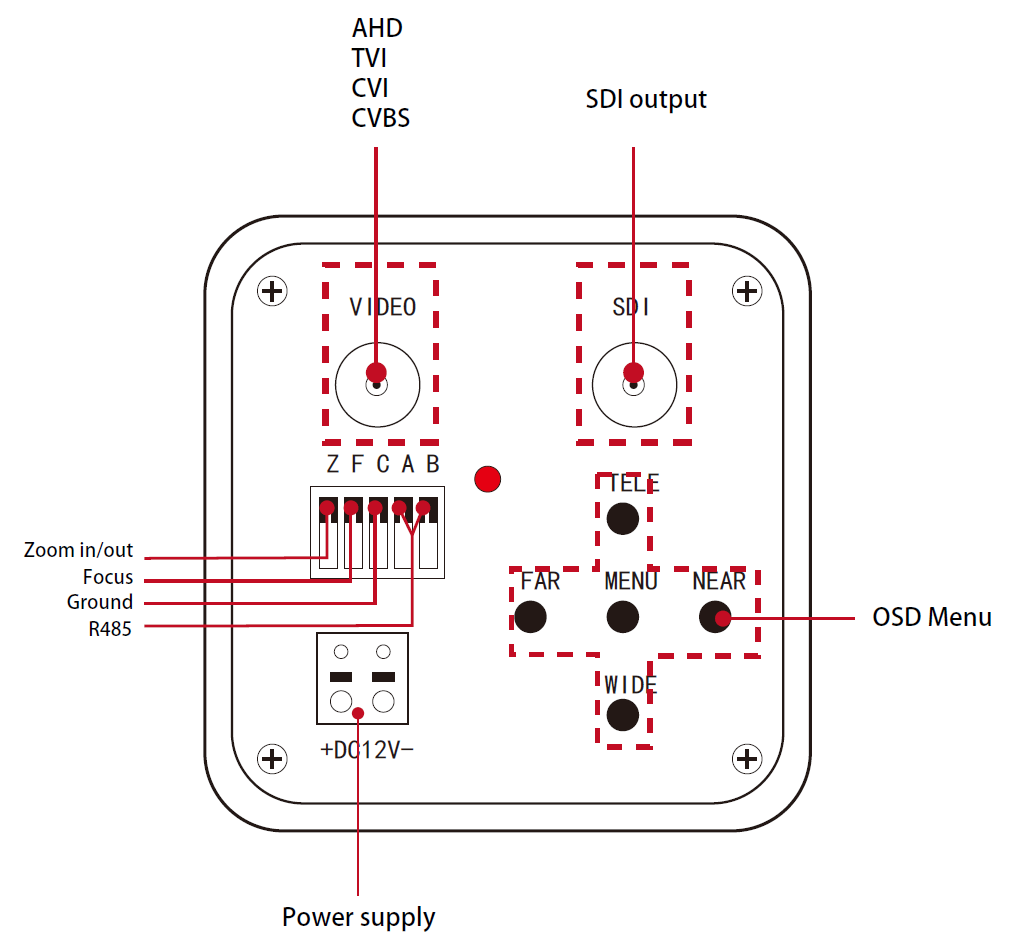

• Signal Output: HD-SDI, EX-SDI, CVI, TVI, CVBS, AHD, Multi-signal output to switch through dial-up, if haven't DVR, can connect the converter directly to the monitor for viewing.

• Other Function: 3D-DNR, Super sensitivity(Sens-up).

• Power Supply: The voltage range is 10V~16V.

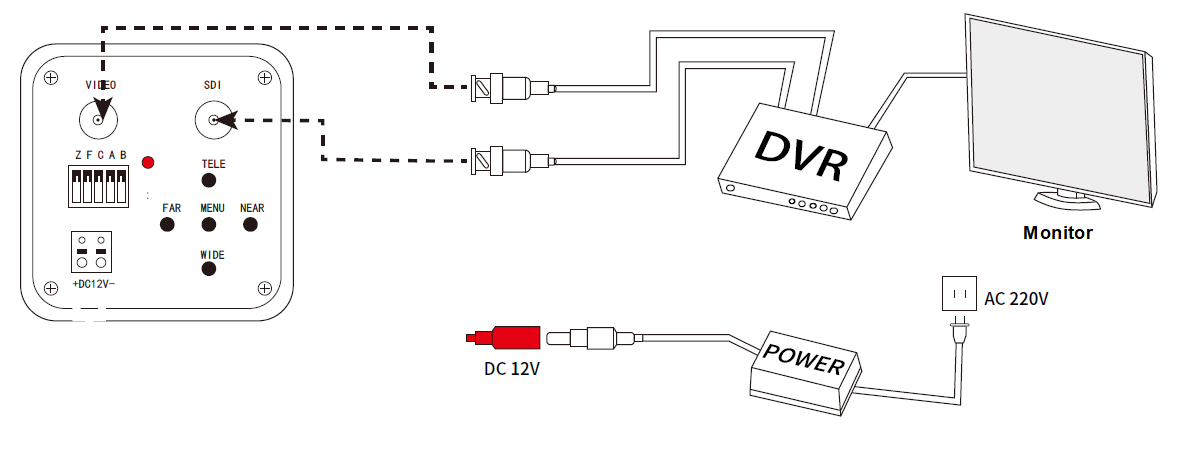

Wiring Diagram

DC12V port connects to the DC12 power adapter (DC 12V≥1000MA）；
The video BNC is connected to the DVR then DVR connected to the monitor with HDMI cable.

When the monitor is turned on and the power supply is normal, can see the monitor picture.

Specification

Note: Package NOT include 12V 2A Power supply.
